Ultimate White Box thoughts

Having an Idea for an Ultimate White Box? Or Multi Usage Ultimate White Box. I’m thinking of building a new All in One White box. I’m quite tired of having all sort of white boxes which consumes energy when stays on all the time. I’d like to be more ECO human….. to consume less energy and be more efficient.

I’ve listened to (downloaded the MP3 since I was sleeping when the OnLine conference was held…. icon cool Ultimate White Box thoughts ) John Troyer’s Talkshow OnLine yesterday, but was quite disappointed since it’s not being quite oriented energy efficiency.

Look at the participants: Simon Seagrave and Jason Boche, both of them or especially Jason because he is running a DataCenter in the house… ! Or as he says “the House is in my lab“….. It’s really not my intention to go this way. I would like to reduce all that.

At the moment at my home lab, its a very MIXED Virtual environement. Workstation 7 and ESX 4.  I have 3 boxes. I’m using mostly for learning for the VCP or VCAP-DCA/DCD path, do some videos on the Windows 7 box too… So I have one box with ESX 4 installed, one with W7 and one with Openfiler.

I would like to OPTIMIZE all that and put everything into ONE new Nehalem box.  To build a whitebox supporting all that, I’m gonna go for Intel i7 processor. But what about the other parts?

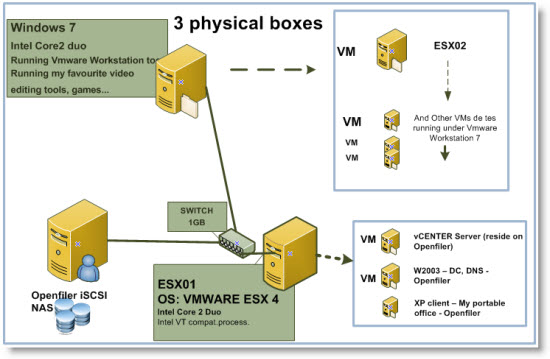

Look at my present schema:

labo home Ultimate White Box thoughts

Something like kekerode in coment section on Duncan’s blog would be interresting:

Intel Core i7 920 @ 3.6GHz OCed
3 x 2GB OCZ Reaper DDR3 1866MHz (going to add 6GB more of it)
2 x WD Raptor 300GB RAID-0

Only difference is that for NAS … I use one more VM of Openfiler

My conditons – to have all in one box. Be able to do some video editing, …. So I want to keep Windows 7 as an Os (since I have some Windows applications I need) for that with VMware Workstation 7 installed. All the rest would be run in Virtual.

Concerning the Storage, there would be interesting to start using SSD’s. I know that they’re still pricey, but I’ve read a good article on Clubic.com (Fr), that review the latest Kingston SSD -SSDNow V+ G2 . Kingston got married with Toshiba which produces the controller cards – Daikoku 2 (DKK2) – compatible natively Windows 7 – to get the TRIM functionality to work with the Kingston’s SSD’s since they apparently never got that Intel Firmware from Intel for the v1 when they worked together with Intel.

And as you know the Trim functionality is quite crucial on the SSD’s since they tend to loose performance at a long term run. (unless you format – that’s also possible, in a lab environment. Just backup all VM”s present there and here you go..)

And the results of their tests, they are very good. Not only in read but also in write. It makes the classic hard disks way too old. Just use Google Translate to translate the whole article there….The model tested is the Kingston SSDNow V+ enterprise class SSD.

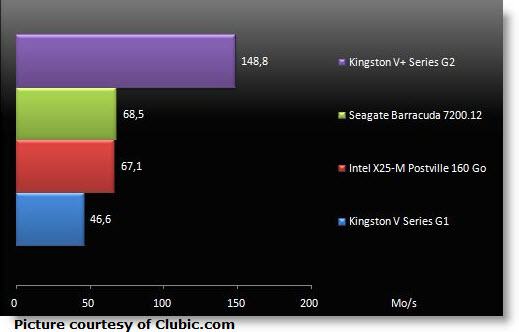

See the Write 512Ko file….

write of file 512ko1 Ultimate White Box thoughts

Openfiler VM, or Starwind SAN could be my shared storage on that SSD drive. Sure the capacity is not great (only 64 or 128 Gigs to keep the price at reasonable level ), but the fastest most demanding VMs could be stored there…. What’s your opinion on that?  How much FAST storage do you ABSOLUTELY need? You do have now mixed entreprise class SAN storages too, so this would be an idea doing the same – in smaller – for a homelab… icon biggrin Ultimate White Box thoughts

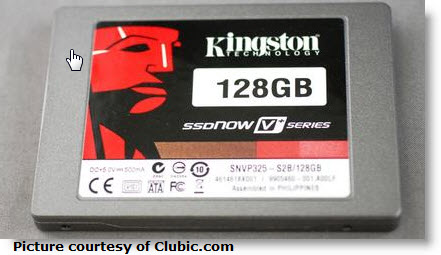

kingston Ultimate White Box thoughts I’m living at Tropical Island where the efforts in energy efficiency and energy economy is becoming the mainstream.

For example with the recent visit of the French President Nicolas Sarkozy at Reunion Island, they’re launching a new program here. There will be Renault ZEproviding 50 electric cars to be tested here on the island. I wrote a whole article about that on my Solar Blog too. The whole infrastructure with the charging stations – by photovoltacis and Wind - will be built.

So for me, my way is clearly NOT to multiply a white boxes in my lab, but to do exactly the opposite way. Built a MutiUsage Whitebox.

I’m waiting for your reactions  and thoughts. Feel free and use the comment section or Twitter. @Vladan

You can have a look at this follow up post where I’m actually thinking what to put into this White Box.


  1. says

    Salut Vladan, I had to rethink my own lab 2 or 3 months ago. I went for a Dell lappy with an Intel i7 820 with 6GB of RAM and a 320GB local disk. I also upgraded to VMware Workstation 7 running on top of W7x64 Ultimate.
    I have installed 3 ESXi4 and several VMs, some locally, some on a remote storage, a QNAP TS-459 that I received recently. The NAS does iSCSI/NFS, Jumbo frame, IEEE 802.3ad and much more . I have filled in the NAS with 2 WD Velociraptor 300GB 10k disks configured in RAID0 for best performances. I’m very happy with this home lab, 2 devices in total and one being my lappy that I can take anywhere. I’ve been a beta tester for QNAP and luckily received a engineering sample for free. The NAS is on VMware HCL and thus certified VMware Ready. It is really nice and performing great with its dual-core Intel ATOM, no need for a SSD so far :) but it’s more expensive than an OpenFiler appliance. BTW stay away from WD Green, Blue or Black in RAID setup, they are just ot compatible by design!.

    • says

      Thanks for the info, Didier. I must do some more research on that before I’ll make the moove. I’d like to use my funds the best way I possibly can… If you know what I mean… -:) I will definitely check closer look to those SSDs.

  2. Adesh says

    Hi Vladan,
    I am a newbie to VMware.

    I am planning to setup a home lab & as I understand, I can use the regular Intel i7 desktop processor with a normal (High performance) desktop motherboard.

    just want to clarify that we don’t need anything exceptional (leave NAS & other stuff apart)
    please confirm if I can run ESXi 4.1 on this & install multiple OS like Win/Sun/Linux on top of ESXi.
