How to create custom ESXi 5.x Firewall rule and why you need to

By Vladan SEGET | Last Updated: June 30, 2016

Shares

You might need to create Custom ESXi 5.x firewall rule for different reasons. One of them might be a custom made in-house software application. Services like FTP, SFTP, Telnet or SSH are not enabled by default, and the ports for these services are closed.  In the list of services, there is not a possibility for an administrator to add a custom firewall rule through the GUI. The process is possible through the CLI. So how to create custom ESXi 5.x Firewall rule?

ESXi 5.x firewall is not based on iptables as it was the case in pre-esxi5.x release. The ESXi firewall retain its configuration during the migration process, and it's active by default for new clean installations of ESXi 5.x.

You maight need to open the firewall for the defined port on TCP or UDP that is not defined by default in Firewall Properties under Configuration > Security Profile on the vSphere Client. Custom firewall rules is also on the VCP and both VCAPs blueprints so if you're studying to pass one of those VMware certification exams, you'll need this knowledge.

ESXi 5.x uses rule list for firewall rules. The rule list is written in config file, which is an XML file located here:

/etc/vmware/firewall/service.xml

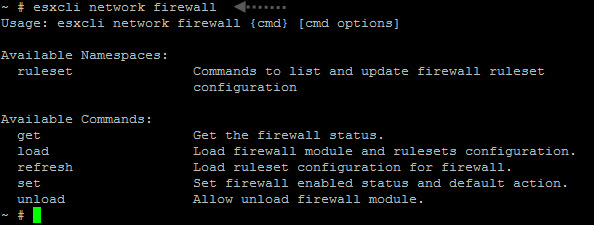

The SSH access must be enabled so you can Putty to your ESXi host. The namespace esxcli network firewall gives you the options needed.

How to create Custom Firewall Rules ESXi 5.x

How to create custom ESXi 5.x Firewall rule?

It's not really difficult to create a custom rule, but you need to know the outline, follow the pattern and also you'll need to know how to work with VI editor… (Note that you can also do part of the job via WinSCP).

Step 1: Backup first the original service.xml file by running this command, but first step in to the directory by

cd /etc/vmware/firewall

And then

cp service.xml service.xml.original

Step 2: Change permissions of the service.xml file so we can do modifications

chmod 644 service.xml

and

chmod +t service.xml

Step 3: Open the service.xml file in VI editor

vi service.xml

Now the most difficult part as there are very strict rules on what a ruleset has to contain.

  • A numeric identifier for the service, if the configuration file contains more than one service.
  • A unique identifier for the rule set, usually the name of the service.
  • For each rule, the file contains one or more port rules, each with a definition for direction, protocol, port type, and port number or range of port numbers.
  • A flag indicating whether the service is enabled or disabled when the rule set is applied.
  • An indication of whether the rule set is required and cannot be disabled.

Example: Rule Set Configuration File

<service id='1256′>
<id>vladans_rule</id>
<rule id='0000′>
<direction>inbound</direction>
<protocol>tcp</protocol>
<porttype>dst</porttype>
<port>1256</port>
</rule>
<enabled>true</enabled>
<required>true</required>
</service>

The best way is to copy one of those rules and adapt it to your needs (changing the ID number, ID, rule ID etc…. ) Note that the dst in the example means destination.

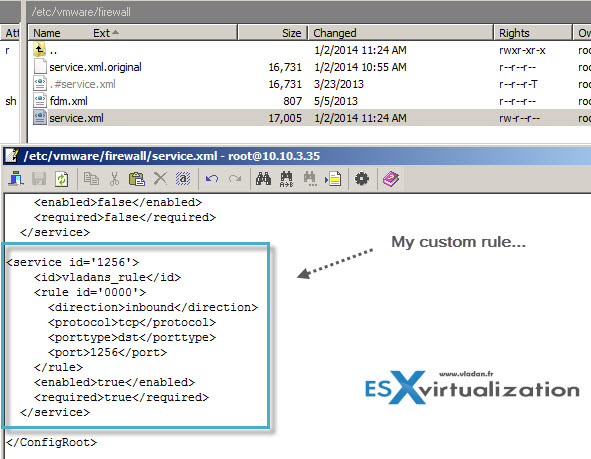

On the example below is screenshot from WinSCP utility, if you prefer …

Add custom firewall rule ESXi 5.x

Step 4 – Re-change the permissions and refresh the firewall…

chmod 444 service.xml

and

esxcli network firewall refresh

Step 5: List the rules by

esxcli network firewall ruleset list

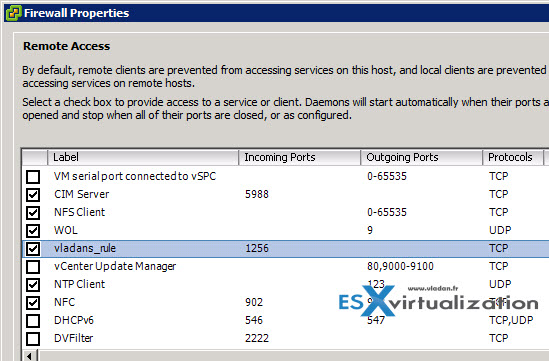

and (or) control that the rule apears through the vSphere client.

How to create Custom Firewall Rules on ESXi 5.x

Thats all. If not there are individual commands which can be passed to open ports, but not quite sure those changes persists through reboots. By using this method the config persists through reboots.

update: just checked with 5.5 u1, and it does not persist across reboot. It was persistant (and tested) with the 5.1 version.

You can use this kb when you want to make it persistant across reboots:

  • User defined xml firewall configurations are not persistent across ESXi host reboots (2007381)

Sources:

  • VMware KB 2008226 – Creating custom firewall rules in VMware ESXi 5.0
  • VMware KB 2005304 – Adding a third-party firewall extension to ESXi 5.0
  • VMware Online Documentation
