VCP-VVF Administrator Study Guide: Objective 2.3 – VMware Storage Fundamentals, Part 5: Identify Options for Resilience and Data Availability in VMware vSAN

By | Last Updated:

Shares

Welcome back to another VMware Certified Professional – VMware vSphere Foundation Administrator (2V0-16.25) study guide article. This section is part of our upcoming VCP-VVF Study Guide Page, which will be released as a PDF when completed. Previously, we have done VCP study guides for older vSphere versions and those are still available (v8 or v7) for te moment as they have still great value. The new exam is slightly different, due the fact that many things has changed since Broadcom acquisition, but the main pillars stays the same.


Today, we’re continuing with Objective 2.3 – VMware Storage Fundamentals, focusing on Given a scenario, identify the options for Resilience and Data Availability in VMware vSAN. We follow the official VMware Blueprint for the exam – VMware vSphere Foundation Administrator (PDF).

VMware vSAN in VMware vSphere Foundation (VVF) 9.0 ensures data resilience and availability through storage policies, fault domains, and integration with vSphere features like HA. This objective is critical for the 2V0-16.25 exam, testing your ability to select appropriate vSAN configurations to maintain data integrity and uptime in real-world scenarios. Building on our previous posts (Objective 2.3, Part 1 on configuring vSphere storage, Part 2 on vSAN ESA/OSA use cases, Part 3 on deploying a vSAN cluster, and Part 4 on vSAN storage policies), we’ll provide detailed explanations, practical tips, and exam-focused guidance using a realistic scenario, aligned with VMware’s official vSphere 9.0 documentation https://techdocs.broadcom.com/us/en/vmware-cis/vsphere/vsphere/9-0.html. Let’s get into it.

Why Resilience and Data Availability Matter in vSAN

VMware vSAN ensures resilience and data availability by distributing data across hosts, using storage policies to define redundancy and fault tolerance, and integrating with vSphere HA for VM recovery. Resilience options like Failures to Tolerate (FTT), RAID levels, and fault domains protect against hardware failures, while features like encryption and heartbeating enhance availability. Objective 2.3, Part 5, evaluates your ability to identify these options in scenarios requiring high uptime or data protection. We’ll cover key vSAN resilience features, focusing on the Original Storage Architecture (OSA, used in Objective 2.3, Part 3), to prepare you for the exam and real-world administration.

Scenario: Identifying vSAN Resilience and Data Availability Options

Let’s use a typical exam scenario: A medium-sized business with a 4-host vSAN cluster (“New-vSAN-Cluster”) running 8 VMs for a customer relationship management (CRM) application (configured in Objective 2.3, Part 3) needs to ensure resilience and data availability. The cluster uses vSAN OSA, is managed by vCenter 9.0 (IP: 192.168.1.20, hosts at 192.168.1.14-17), and has vSphere HA and encryption enabled (from Objective 2.2, Part 7). The vSAN datastore (“vSAN-Datastore-New”) has 1 NVMe SSD (400 GB cache) and 2 SSDs (1 TB each for capacity) per host. You must: identify vSAN options to ensure resilience for 6 CRM VMs and high availability for 2 database VMs, considering host failures, rack failures, and network issues. This scenario tests your ability to select vSAN resilience and availability options for the 2V0-16.25 exam.

Identifying vSAN Resilience and Data Availability Options: Step-by-Step

Identifying resilience and data availability options in vSAN involves understanding storage policies, fault domains, and integration with vSphere HA. Below is a detailed guide with explanations and considerations for the scenario, using the vSphere Client for VVF 9.0.

1. Storage Policies for Resilience

Overview: vSAN storage policies define data redundancy and fault tolerance using Failures to Tolerate (FTT) and RAID levels, ensuring data remains accessible during failures.

Options and Application:

  1. Failures to Tolerate (FTT):
  • FTT=1: Tolerates one host or disk failure by maintaining one data replica (e.g., RAID-1 requires 2x storage, RAID-5 requires ~1.33x storage).
  • FTT=0: No redundancy, suitable for non-critical VMs but risky for data loss.
  • Scenario Fit: For the 6 CRM VMs, use FTT=1 with RAID-1 (from “CRM-High-Availability-Policy”, Objective 2.3, Part 4) to ensure data availability during a single host failure. For the 2 database VMs, use FTT=1 with RAID-5 (from “DB-Performance-Policy”) for performance and space efficiency.

   2. Failure Tolerance Method:

  • RAID-1 (Mirroring): Creates full data copies across hosts, ideal for high availability (requires 2n+1 hosts for FTT=n, e.g., 3 hosts for FTT=1).
  • RAID-5 (Erasure Coding): Uses parity for space efficiency, suitable for performance-sensitive VMs (requires 4+ hosts for FTT=1).
  • Scenario Fit: RAID-1 for CRM VMs ensures maximum availability; RAID-5 for database VMs balances performance and capacity.

   3. Verification:

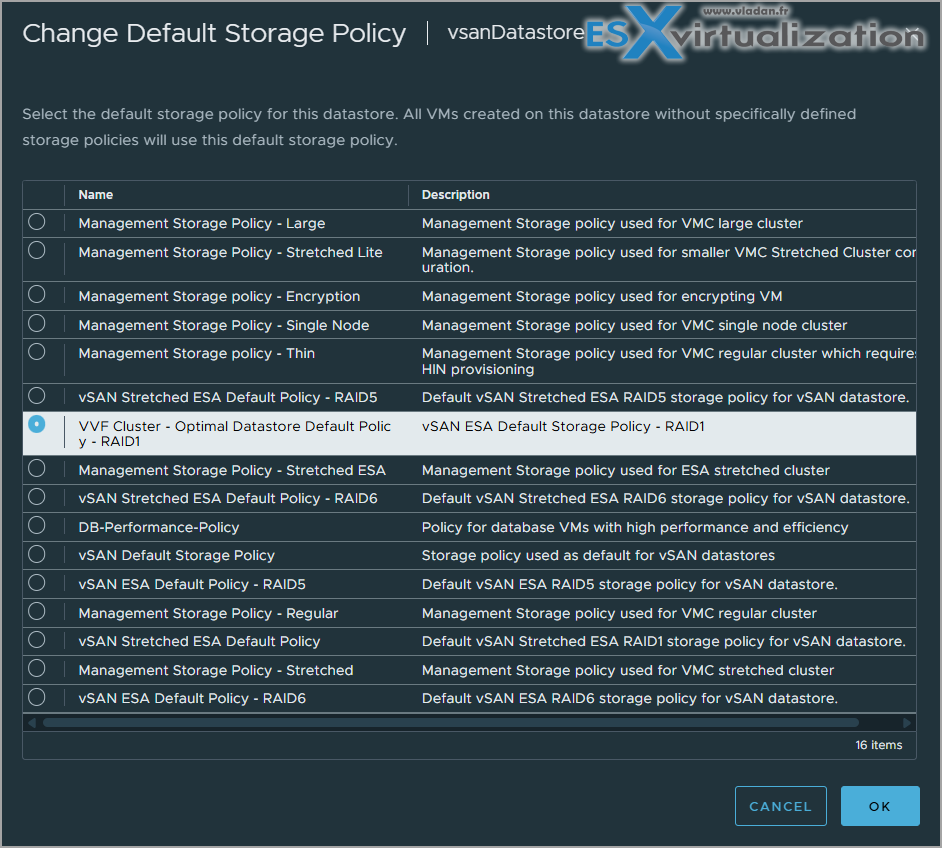

  • Navigate to Policies and Profiles → VM Storage Policies → CRM-High-Availability-Policy → Monitor to confirm RAID-1 compliance for CRM VMs.
  • Check DB-Performance-Policy for RAID-5 compliance for database VMs.
  • Verify in Cluster → Monitor → vSAN → Capacity that sufficient space exists for RAID-1 (2x for CRM VMs) and RAID-5 (~1.33x for database VMs).

Scenario Example: Use FTT=1 with RAID-1 for the 6 CRM VMs to ensure resilience against one host failure, and FTT=1 with RAID-5 for the 2 database VMs to optimize performance and space.

Study Tip: Memorize FTT and RAID options (RAID-1: 3+ hosts, RAID-5: 4+ hosts) and their storage overhead for the exam. Practice policy verification in VMware Hands-On Labs https://labs.hol.vmware.com/.

2. Fault Domains for Enhanced Resilience

Overview: Fault domains group hosts to isolate failures (e.g., rack or site failures), enhancing vSAN resilience by distributing data replicas across domains.

Options and Application:

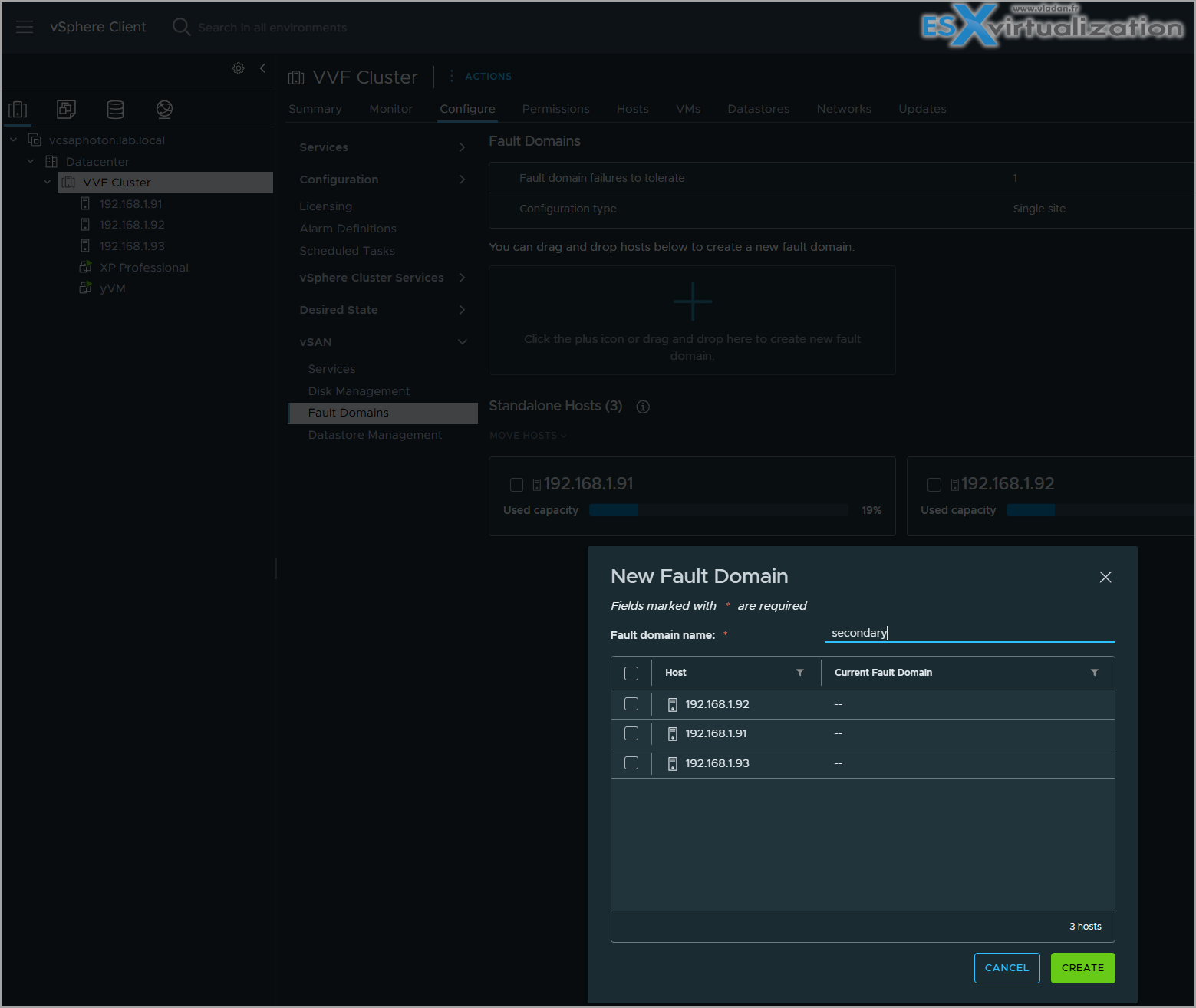

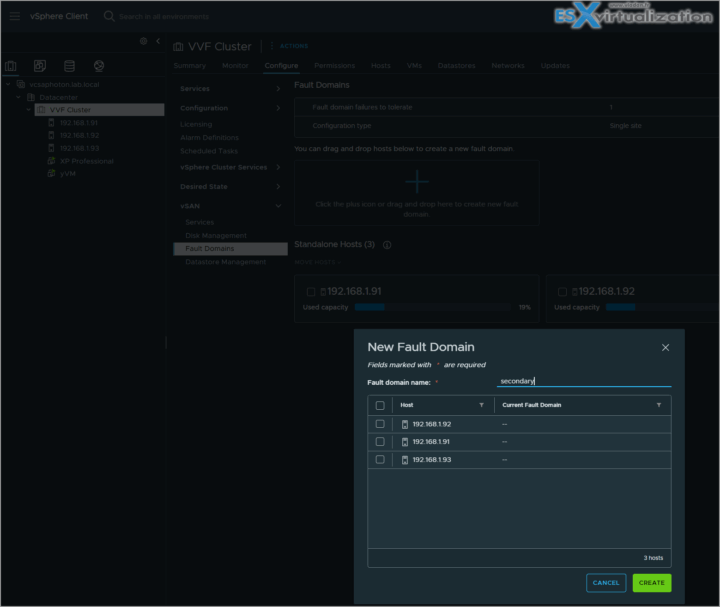

  1. Configure Fault Domains:
  • For rack-level resilience, assume the 4 hosts are in 2 racks (e.g., 192.168.1.14-15 in Rack 1, 192.168.1.16-17 in Rack 2).
  • Navigate to Cluster → Configure → vSAN → Fault Domains → Add.
  • Create two fault domains:FD-Rack1: Add hosts 192.168.1.14-15.
  • FD-Rack2: Add hosts 192.168.1.16-17.
  • vSAN places data replicas across fault domains (e.g., one replica in FD-Rack1, another in FD-Rack2 for FTT=1).

    2. Benefits:

  • Protects against rack-level failures (e.g., power or network issues in one rack).
  • Enhances availability for the CRM and database VMs by ensuring data is not confined to a single rack.

    3. Verification:

  • Check Cluster → Configure → vSAN → Fault Domains to confirm hosts are correctly grouped.
  • Verify Cluster → Monitor → vSAN → Data Placement to ensure VM objects are distributed across FD-Rack1 and FD-Rack2.

Scenario Example: Configure two fault domains (FD-Rack1 and FD-Rack2) to protect the 8 VMs against rack-level failures, ensuring data replicas are spread across racks.

Study Tip: Practice configuring fault domains in a lab, focusing on the minimum requirement (2 fault domains for FTT=1). Understand their role in rack or site resilience for exam questions.

3. vSphere HA Integration for Data Availability

Overview: vSphere HA ensures VM availability by restarting VMs on surviving hosts after a failure, leveraging vSAN’s shared storage for seamless recovery.

Options and Application:

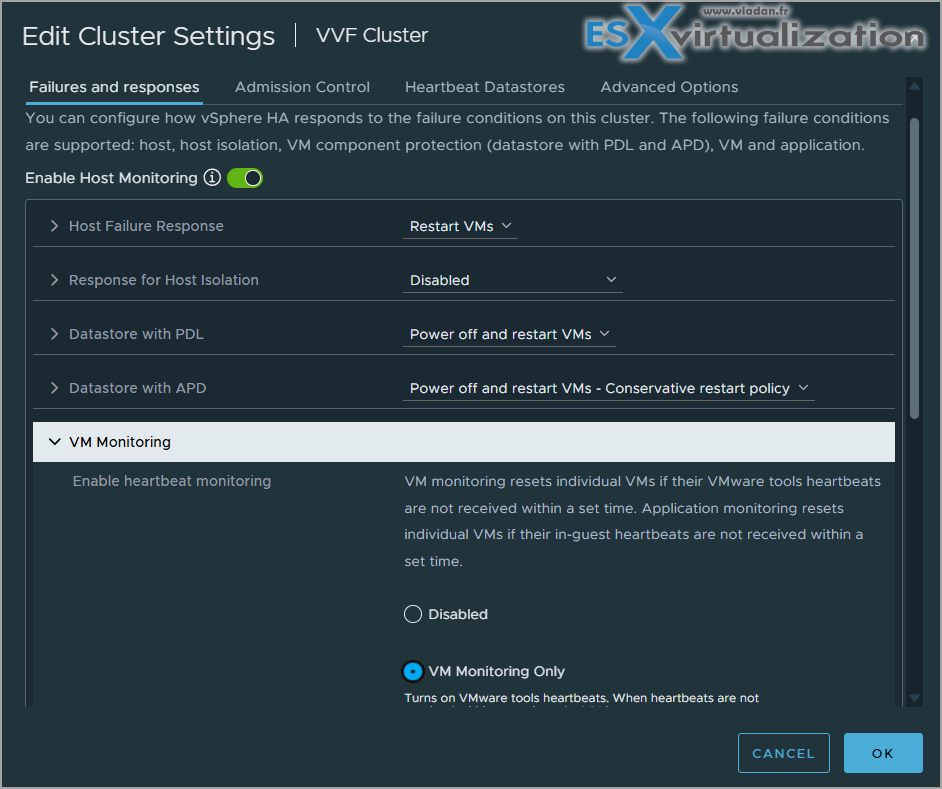

  1. HA Configuration:
  • Confirm HA is enabled (from Objective 2.3, Part 3): Cluster → Configure → vSphere Availability.
  • Set Host Failure Response to Restart VMs.
  • Configure Datastore Heartbeating: Select “vSAN-Datastore-New” to monitor vSAN availability.
  • Enable VM Monitoring to detect VMware Tools heartbeats for the CRM and database VMs, restarting them if they fail.

     2. Benefits:

  • Ensures the 8 VMs restart on other hosts (e.g., 192.168.1.15-17) if one host (e.g., 192.168.1.14) fails.
  • Leverages vSAN’s shared storage for immediate access to VM data post-failover.

    3. Verification:

  • Simulate a host failure: Power off 192.168.1.14.
  • Check Cluster → Monitor → Events to confirm VMs restart on other hosts.
  • Verify Cluster → Monitor → vSAN → Health remains green during failover.

Scenario Example: Use vSphere HA with “vSAN-Datastore-New” for heartbeating and VM monitoring to ensure the 8 VMs remain available during host failures.

Study Tip: Practice HA failover with vSAN in a lab, focusing on heartbeating and VM monitoring. Understand vSAN’s role as a shared datastore for HA.

4. Additional Resilience Features

Overview: vSAN offers features like encryption, deduplication, and compression to enhance data protection and availability.

Options and Application:

  1. Encryption:
  • Enabled in Objective 2.3, Part 3, using “VVF-KMS” (IP 192.168.1.50).
  • Protects data-at-rest for all VMs on “vSAN-Datastore-New”, ensuring compliance and security during failures.
  • Verify: Cluster → Configure → vSAN → Services → Encryption (should show “Enabled”).

  2. Deduplication and Compression:

  • Enabled in Objective 2.3, Part 3 to optimize storage efficiency.
  • Reduces storage usage for the 8 VMs, ensuring capacity availability during failures.
  • Verify: Cluster → Monitor → vSAN → Capacity to confirm deduplication ratio (e.g., 1.5x).

3. Network Resilience:

  • vSAN traffic uses a dedicated VMkernel NIC on VLAN 30 (from Part 3) with 10 GbE NICs.
  • Configure NIC teaming on the vDS (“vDS-vSAN”) for redundancy: Networking → vDS-vSAN → Configure → Teaming and Failover → Use multiple uplinks.
  • Verify: Cluster → Monitor → vSAN → Health → Network for connectivity status.

Scenario Example: Leverage encryption, deduplication, compression, and network redundancy to enhance resilience and availability for the CRM and database VMs.

Study Tip: Memorize vSAN features (encryption, deduplication, compression) and their impact on resilience. Practice network redundancy setup for the exam.

Exam Scenarios and Tips

Scenarios:Scenario: A vSAN cluster loses data during a host failure. What’s a likely cause?
Answer: FTT=0 was used instead of FTT=1, providing no redundancy.

Scenario: A RAID-5 policy is non-compliant. What should you check?
Answer: Ensure at least 4 hosts are available and vSAN health is green.

Scenario: VMs are unavailable after a rack failure. How can you improve resilience?
Answer: Configure fault domains to distribute data replicas across racks.

Study Tips:

Resources:

Sample Exam Questions

Which vSAN setting ensures data resilience against one host failure?
A. FTT=0
B. FTT=1
C. RAID-0
D. Thin Provisioning
Answer: B. FTT=1.

What is the minimum number of hosts required for vSAN RAID-5 in OSA?
A. 2
B. 3
C. 4
D. 5
Answer: C. 4.

How does vSphere HA enhance vSAN data availability?
A. Enables deduplication
B. Restarts VMs on surviving hosts
C. Configures fault domains
D. Applies encryption
Answer: B. Restarts VMs on surviving hosts.

Final Words

Identifying resilience and data availability options in vSAN is a critical skill for the 2V0-16.25 exam and VVF administration. By mastering storage policies, fault domains, vSphere HA, and additional features like encryption, you’ll ensure data protection and uptime in any scenario. The upcoming VCP-VVF Study Guide Page, available at https://www.vladan.fr/vcp-vvf-administrator/, will be released as a PDF to support your preparation. Stay tuned for the next part of Objective 2.3! Happy studying, and good luck on your VCP-VVF journey!
