VCP-VVF Administrator Study Guide: Objective 2.4 – VMware Network Fundamentals: Differentiate Between VVF Networking Components

By | Last Updated:

Shares

Welcome back to our VMware Certified Professional – VMware vSphere Foundation Administrator (2V0-16.25) study guide series! This section is part of the upcoming VCP-VVF Study Guide Page, which will be released as a PDF when completed—check it out at https://www.vladan.fr/vcp-vvf-administrator/.


Today, we’re starting Objective 2.4 – VMware Network Fundamentals, focusing on Given a scenario, differentiate between VVF networking components. Networking in VMware vSphere Foundation (VVF) 9.0 ensures connectivity for virtual machines (VMs), hosts, and management services through components like standard switches, distributed switches, VMkernel adapters, and port groups.

This objective is critical for the 2V0-16.25 exam, testing your ability to understand and distinguish these components in real-world scenarios. Building on our previous posts (Objective 2.3 on storage fundamentals), we’ll provide detailed explanations, practical tips, and exam-focused guidance using a realistic scenario, aligned with VMware’s official vSphere 9.0 documentation https://techdocs.broadcom.com/us/en/vmware-cis/vsphere/vsphere/9-0.html. Let’s get into it and dive into VVF networking!

Why Differentiating VVF Networking Components Matters

VVF 9.0 networking components—vSphere Standard Switch (vSS), vSphere Distributed Switch (vDS), VMkernel adapters, and port groups—enable connectivity for VMs, ESXi hosts, and services like vMotion, vSAN, and management. Understanding their roles, configurations, and differences is essential for setting up efficient and secure networks. Objective 2.4 tests your ability to identify the appropriate component for specific use cases, such as isolating VM traffic or configuring vMotion. We’ll explore each component’s purpose, features, and application in a scenario, ensuring you’re prepared for the exam and real-world administration.

Scenario: Differentiating VVF Networking Components

Let’s use a typical exam scenario: A medium-sized business with a 4-host vSAN cluster (“New-vSAN-Cluster”) running 8 VMs for a customer relationship management (CRM) application (configured in Objective 2.3, Part 3) needs to configure networking for a new set of 10 VDI VMs. The cluster is managed by vCenter 9.0 (IP: 192.168.1.20, hosts at 192.168.1.14-17) with vSphere HA and vSAN enabled. The network must support: VM traffic for CRM and VDI VMs, vMotion for migrations, vSAN traffic, and management. You must: differentiate between VVF networking components (vSS, vDS, VMkernel adapters, port groups) to determine the best setup for each traffic type, ensuring performance, scalability, and isolation. This scenario tests your ability to distinguish VVF networking components for the 2V0-16.25 exam.

Differentiating VVF Networking Components:

Understanding VVF networking components involves comparing their roles, configurations, and use cases. Below is a detailed guide explaining each component’s purpose and application in the scenario, using the vSphere Client for VVF 9.0.

1. vSphere Standard Switch (vSS)

Purpose: A vSphere Standard Switch (vSS) is a host-level virtual switch that provides networking for VMs and VMkernel adapters on a single ESXi host, ideal for simple environments.

Key Characteristics:

  • Scope: Configured individually on each ESXi host (192.168.1.14-17).
  • Features: Supports VLAN tagging, NIC teaming, and traffic shaping. Does not support advanced features like Network I/O Control or centralized management.

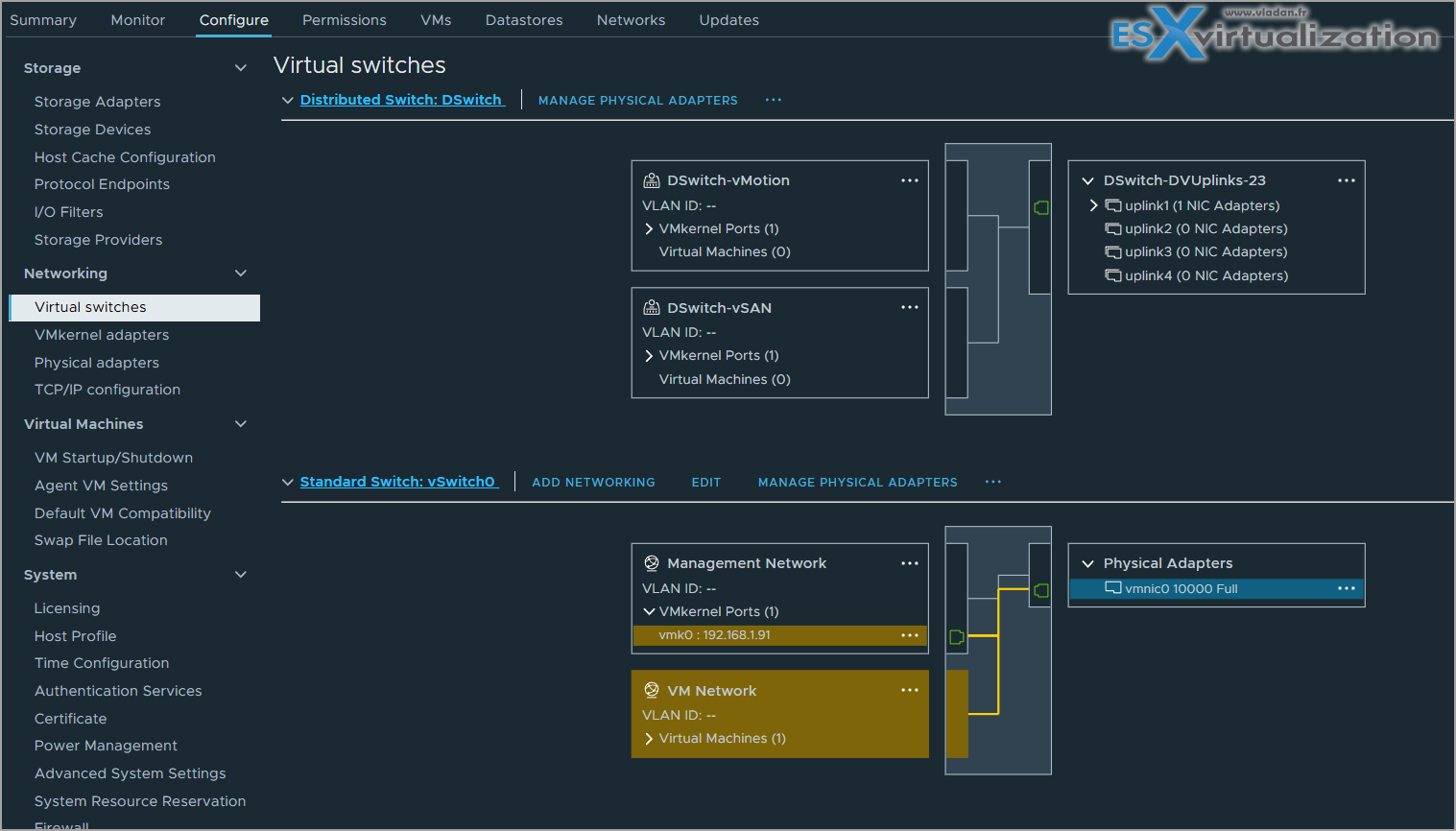

  • Configuration: Created via Host → Configure → Networking → Virtual Switches → Add Standard Switch.
  • Use Case: Suitable for small setups or initial deployments with limited hosts, where centralized management isn’t needed.
  • Scenario Fit:Use vSS for initial management traffic on each host (e.g., for ESXi management on VLAN 10).
  • Example: Configure a vSS (“vSwitch0”) on each host with a “Management” port group (VLAN 10, IP 192.168.10.14-17) for host management.

Limitations: Requires manual configuration on each host, making it error-prone for multi-host clusters like “New-vSAN-Cluster”.

Scenario Example: Use vSS for management traffic on each host (192.168.1.14-17) with a “Management” port group, but avoid for VM or vSAN traffic due to lack of centralized management.

Study Tip: Memorize that vSS is host-specific and lacks advanced features. Practice creating a vSS in VMware Hands-On Labs https://labs.hol.vmware.com/ for the exam.

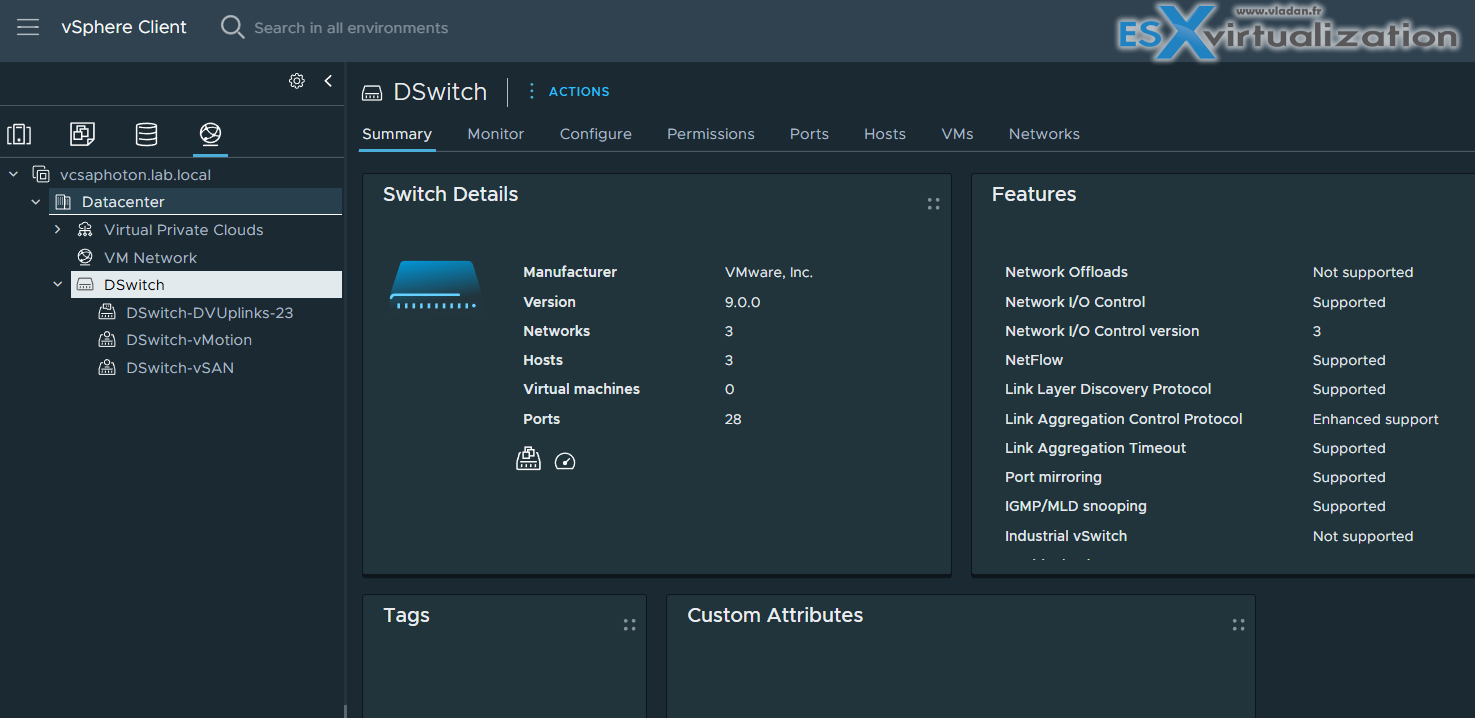

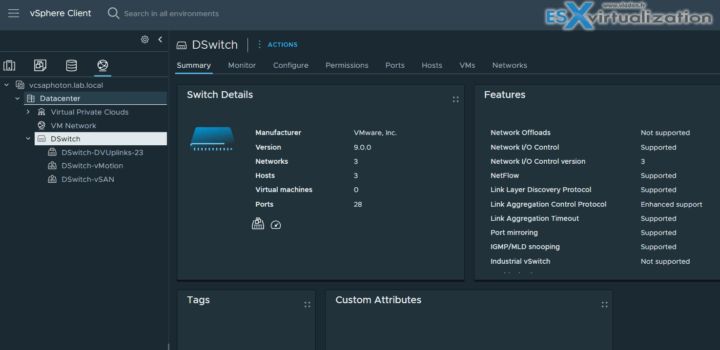

2. vSphere Distributed Switch (vDS)

Purpose: A vSphere Distributed Switch (vDS) is a centralized virtual switch managed by vCenter, providing consistent networking across all hosts in a cluster, ideal for scalability and advanced features.

Key Characteristics:

  • Scope: Managed at the vCenter level (192.168.1.20), applied to all hosts in “New-vSAN-Cluster”.
  • Features: Supports VLANs, NIC teaming, Network I/O Control (NIOC), port mirroring, and centralized management. Included in VVF 9.0 licensing.
  • Configuration: Created via Networking → New Distributed Switch in vCenter, then assigned to hosts.
  • Use Case: Ideal for VM traffic, vMotion, and vSAN in clusters requiring consistent policies and scalability.
  • Scenario Fit:Use vDS for VM traffic (CRM and VDI VMs), vMotion, and vSAN traffic to ensure consistent configuration across hosts.
  • Example: Configure a vDS (“vDS-New”) with port groups for “VM-Traffic” (VLAN 20), “vMotion” (VLAN 30), and “vSAN” (VLAN 40, from Objective 2.3, Part 3).
  • Advantages: Simplifies management, supports NIOC for prioritizing vSAN traffic, and ensures uniform settings for the 18 VMs.

Scenario Example: Use vDS (“vDS-New”) for VM traffic (CRM/VDI VMs on VLAN 20), vMotion (VLAN 30), and vSAN (VLAN 40) to centralize networking for “New-vSAN-Cluster”.

Study Tip: Understand vDS’s centralized management and NIOC support. Practice configuring a vDS in a lab, focusing on port group assignment.



3. VMkernel Adapters

Purpose: VMkernel adapters are virtual network interfaces on ESXi hosts that handle system traffic (e.g., management, vMotion, vSAN) rather than VM traffic.

Key Characteristics:

  • Scope: Configured per host, attached to vSS or vDS port groups.
  • Features: Supports services like management, vMotion, vSAN, Fault Tolerance, and iSCSI. Requires dedicated IP addresses and VLANs.
  • Configuration: Created via Host → Configure → Networking → VMkernel NICs → Add VMkernel NIC.
  • Use Case: Essential for host-level services, ensuring isolated and secure traffic.
  • Scenario Fit:Management: VMkernel NIC (vmk0) on vSS (“vSwitch0”, VLAN 10, IPs 192.168.10.14-17) for ESXi management.
  • vMotion: VMkernel NIC (vmk1) on vDS (“vDS-New”, VLAN 30, IPs 192.168.30.14-17) for VM migrations.
  • vSAN: VMkernel NIC (vmk2) on vDS (“vDS-New”, VLAN 40, IPs 192.168.40.14-17, from Objective 2.3, Part 3) for storage traffic.
  • Considerations: Use 10 GbE NICs with jumbo frames (MTU 9000) for vMotion and vSAN to optimize performance.

Scenario Example: Configure VMkernel adapters for management (vSS, VLAN 10), vMotion (vDS, VLAN 30), and vSAN (vDS, VLAN 40) to support host services in “New-vSAN-Cluster”.

Study Tip: Memorize VMkernel services (management, vMotion, vSAN) and their VLAN/IP requirements. Practice configuring VMkernel NICs in a lab.

4. Port Groups

Purpose: Port groups are logical containers on vSS or vDS that define network settings (e.g., VLAN, security policies) for VMs or VMkernel adapters.

Key Characteristics:

  • Scope: Configured on vSS (host-level) or vDS (cluster-level).
  • Features: Supports VLAN tagging, security policies (e.g., promiscuous mode), traffic shaping, and NIC teaming.
  • Configuration: Created via Networking → vSS/vDS → New Port Group.
  • Use Case: Isolates traffic types (e.g., VM, vMotion, vSAN) and applies consistent policies.
  • Scenario Fit:VM-Traffic PG: On vDS (“vDS-New”, VLAN 20) for CRM (8 VMs) and VDI (10 VMs) traffic, ensuring isolation from management and vSAN.
  • vMotion PG: On vDS (“vDS-New”, VLAN 30) for VMkernel adapters (vmk1), supporting secure migrations.
  • vSAN PG: On vDS (“vDS-New”, VLAN 40) for VMkernel adapters (vmk2), isolating storage traffic.
  • Management PG: On vSS (“vSwitch0”, VLAN 10) for VMkernel adapters (vmk0), separating management traffic.
  • Considerations: Apply security policies (e.g., disable promiscuous mode) and enable jumbo frames for vMotion/vSAN port groups.

Scenario Example: Configure port groups on vDS (“VM-Traffic”, “vMotion”, “vSAN”) and vSS (“Management”) to isolate traffic for the 18 VMs and host services.

Study Tip: Understand port group configuration for VLANs and security. Practice creating port groups on vSS and vDS in a lab.

Exam Scenarios and Tips

Scenarios:

Scenario: vMotion fails between hosts. Which component should you check?
Answer: VMkernel adapters (vmk1) on the vMotion port group, ensuring correct VLAN and IP settings.

Scenario: VM traffic is not isolated. What’s a likely issue?
Answer: Incorrect VLAN configuration on the VM-Traffic port group or using vSS instead of vDS.

Scenario: Management traffic is slow. What can you improve?
Answer: Move management to a vDS port group with NIOC to prioritize traffic, or check NIC teaming on vSS.

Study Tips:Practice configuring vSS, vDS, VMkernel adapters, and port groups in VMware Hands-On Labs https://labs.hol.vmware.com/.
Memorize: vSS (host-level, simple), vDS (cluster-level, advanced), VMkernel (system traffic), port groups (traffic isolation).
Review VMware vSphere 9.0 documentation https://techdocs.broadcom.com/us/en/vmware-cis/vsphere/vsphere/9-0.html for networking details.
Focus on scenario-based questions involving traffic isolation, scalability, and component selection.

Resources:VCP-VVF Study Guide Page: https://www.vladan.fr/vcp-vvf-administrator/
VMware vSphere 9.0 Documentation: https://techdocs.broadcom.com/us/en/vmware-cis/vsphere/vsphere/9-0.html

Sample Exam Questions

Which VVF networking component is managed at the vCenter level?
A. vSphere Standard Switch
B. vSphere Distributed Switch
C. VMkernel Adapter
D. Port Group
Answer: B. vSphere Distributed Switch.

Which component handles vMotion traffic in a vSAN cluster?
A. vSphere Standard Switch
B. VMkernel Adapter
C. VM Port Group
D. Physical NIC
Answer: B. VMkernel Adapter.

What is the purpose of a port group in VVF 9.0?
A. Manages physical NICs
B. Defines VLAN and security settings
C. Configures vCenter services
D. Enables deduplication
Answer: B. Defines VLAN and security settings.

Final Words

Differentiating VVF networking components is a vital knowledge for the 2V0-16.25 exam and VVF administration. By understanding vSS, vDS, VMkernel adapters, and port groups, you can design efficient and secure networks for any scenario. The upcoming VCP-VVF Study Guide Page, available at https://www.vladan.fr/vcp-vvf-administrator/, will be released as a PDF to support your preparation. Stay tuned for the next part of Objective 2.4! Happy studying, and good luck on your VCP-VVF journey!
