How To Test Network Connectivity with a vmkping command in VMware environments

By | Last Updated:

Shares

A simple quick post this Friday, for people willing to quickly test network connectivity by using the vmkping command. If you're new to VMware vSphere, you might be not aware of vmkping command or do not know exactly what's the purpose and use cases.

VMKping command is useful when testing network connectivity for vmkernel adapters, used for iscsi, vsan, vmotion, management etc. Also, when having jumbo frames activated within your storage network.

Jumbo frames reduce the CPU load caused by transferring data. Enable jumbo frames on a VMkernel network interface by changing the maximum transmission units (MTU) of the VMkernel interface.

The vmkping command will, by default, use any path to reach the destination IP. By specifying an additional parameter we can send out a ping command via a specific vmkernel port. We'll show that option in a minute.

The first thing you need to do is to enable SSH in order to be able to connect via SSH client, such as Putty. After that, just follow the steps below.

Test Network Connectivity with a vmkping command – The steps:

Step 1: Connect to your ESXi host via SSH.

Step 2: use this command. In the command shell, run this command:

vmkping x.x.x.x

where

x.x.x.x

is the hostname or IP address of the remote server's vmkernel network interface that you want to ping.

If you have Jumbo Frames configured in your environment, run the vmkping command with the -s and -d options.

vmkping -d -s 8972 x.x.x.x

In order to specify the vmkernel port which you want to use, you must first have a look for more details. You must know which vmkernel port you want to test. You can check the detail through the command line as well.

First, run this command to list all available adapters:

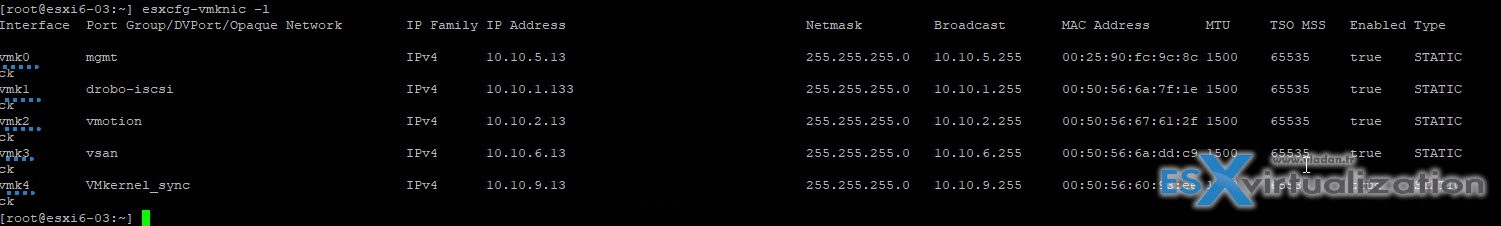

esxcfg-vmknic -l

See the output below.

Then only select the one which you want to test and enter:

So here is the option to specify which vmkernel port to use for outgoing ICMP traffic with the -I option:

vmkping -I vmkX x.x.x.x

example:

vmkping -I vmk1 10.10.5.11

would test a remote host connectivity via vmk1 vmkernel port.

It's actually quite old news, as it is possible since vSphere 5.1, the vmkping command can also specify a VMkernal port to be used for testing with.

Tip: To display the host's vmkernel routing table, use the esxcfg-route -l command.

Hope it will help someone.

A while back, I have also published some other networking command posts. You might be interested in those as well.

Well, this is it. Hope you've learned something. Stay tuned for more tips and tutorials.

More from ESX Virtualization

Stay tuned through RSS, and social media channels (Twitter, FB, YouTube)

Shares
Vote !

About Vladan SEGET

This website is maintained by Vladan SEGET. Vladan is as an Independent consultant, professional blogger, vExpert x16, Veeam Vanguard x9, VCAP-DCA/DCD, ESX Virtualization site has started as a simple bookmarking site, but quickly found a large following of readers and subscribers.

Connect on: Facebook. Feel free to network via Twitter @vladan.

Comments

  1. David Brown says

    On VMware ESXi, 6.0.0, 10719132, I’m attempting to test a new dedicated NIC for vMotion using vmkping, but the -I option returns “Invalid argument.” Any ideas what I’m doing wrong?

    [root@VS104:~] esxcfg-vmknic -l
    Interface Port Group/DVPort/Opaque Network IP Family IP Address Netmask Broadcast MAC Address MTU TSO MSS Enabled Type NetStack
    vmk0 Management Network IPv4 192.168.23.104 255.255.255.0 192.168.23.255 d4:85:64:cd:2b:78 1500 65535 true STATIC defaultTcpipStack
    vmk1 vMotion IPv4 10.1.1.104 255.255.255.0 10.1.1.255 00:50:56:6c:47:d7 9000 65535 true STATIC vmotion
    [root@VS104:~] vmkping -I vmk1 10.1.1.107
    Unknown interface ‘vmk1’: Invalid argument

  2. bobbo says

    getting same invalid arg.

    Interface Port Group/DVPort/Opaque Network IP Family IP Address Netmask Broadcast MAC Address MTU TSO MSS Enabled Type NetStack
    vmk0 Management Network IPv4 192.168.1.169 255.255.255.0 192.168.1.255 00:25:90:86:9a:1c 1500 65535 true DHCP defaultTcpipStack
    vmk0 Management Network IPv6 fe80::225:90ff:fe86:9a1c 64 00:25:90:86:9a:1c 1500 65535 true STATIC, PREFERRED defaultTcpipStack
    vmk1 VMkernel-10g-vMot-vmotstack IPv4 192.168.6.169 255.255.255.0 192.168.6.255 00:50:56:6b:98:da 9000 65535 true STATIC vmotion
    vmk1 VMkernel-10g-vMot-vmotstack IPv6 fe80::250:56ff:fe6b:98da 64 00:50:56:6b:98:da 9000 65535 true STATIC, PREFERRED vmotion
    vmk2 VMkernel IPv4 192.168.8.169 255.255.255.0 192.168.8.255 00:50:56:6d:a0:26 9000 65535 true STATIC vSphereProvisioning
    vmk2 VMkernel IPv6 fe80::250:56ff:fe6d:a026 64 00:50:56:6d:a0:26 9000 65535 true STATIC, PREFERRED vSphereProvisioning
    [root@3uX9host:~] vmkping -I vmk1 192.168.6.212
    Unknown interface ‘vmk1’: Invalid argument
    [root@3uX9host:~]
    [root@3uX9host:~]
    [root@3uX9host:~]
    [root@3uX9host:~] vmkping -I vmk1 192.168.6.212
    Unknown interface ‘vmk1’: Invalid argument

  3. bobbo says

    getting same invalid arg. all is checked and using -I

    (also post here is not working , 4th time posting this, thus why its short, i lost my other replies)
