How-to use Symantec BESR to V2P your VM – Part 1

In this article I’m gonna show you that is possible to use Symantec’s Backup Exec System Recovery 8 to sucessfully convert your VMs either into VMware (VMDK) or into Virtual PC (VHD) format. The advantage of using BESR is that you can also use the image of your VM to do a Virtual into Physical conversion – V2P.

Ok here is my configuration and some explications of what exactly you’ll find in this how-to :

• I’m running VMWare Workstation 6.5 with a VM of Windows XP.
• I want to convert this VM into Virtual PC format (VHD) so I can use it inside of Virtual PC or Hyper-V
• Iside of the VM I will install BESR 8 and I will create a ‘image’ of my C: drive. This onto a E: drive (I suppose that everybody knows how to add an additional hard drive under VMware Workstation)

1.) Install Symantec BESR 8 inside of your VM.(you can download a trial copy valid 60days here)

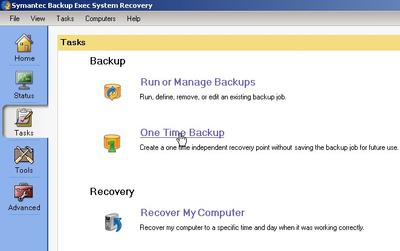

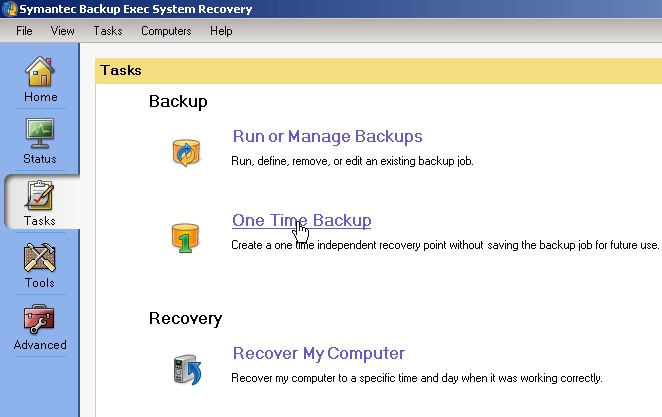

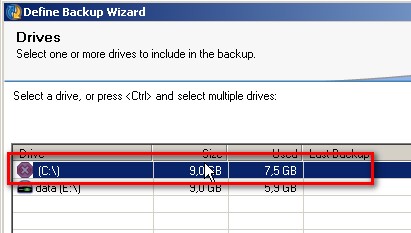

2.) After the installation go to Tasks-create one time backup

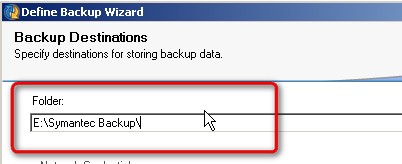

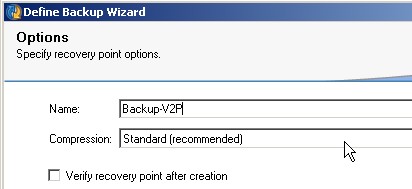

3.) Then you specify the location of the Image file which you want to create and you name the backup. (In my exemple I specified my second disk inside of my virtual machine. I hope it’s clear for everyone – My VM has 2 disks)

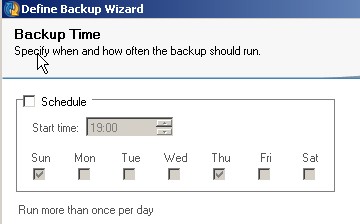

4.) You can just uncheck the Schedule, because you will not need to schedule aditional backups. Then just click next

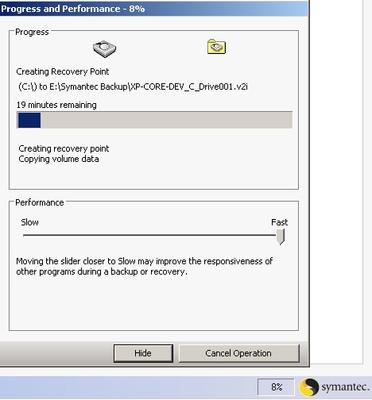

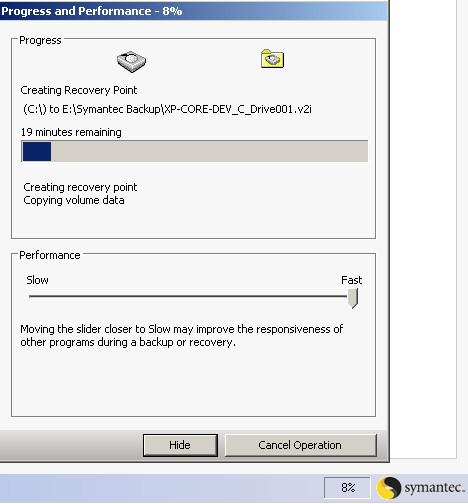

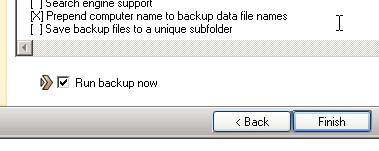

5.) Then click Finish to start the Imaging process…
