Welcome back to our VMware Certified Professional – VMware vSphere Foundation Administrator (2V0-16.25) study guide series! This section is part of the upcoming VCP-VVF Study Guide Page, which will be released as a PDF when completed—check it out at https://www.vladan.fr/vcp-vvf-administrator/. We follow the official VMware Blueprint for the exam – VMware vSphere Foundation Administrator (PDF).

Today, we’re kicking off Objective 4.1 – VVF: Deploy and Configure, focusing on Given a scenario, identify the components of a VVF Deployment. VMware vSphere Foundation (VVF) 9.0 is a comprehensive virtualization platform that includes key components for managing virtualized environments. This objective is critical for the 2V0-16.25 exam, testing your ability to recognize and understand the roles of VVF components in real-world deployments.

Building on our previous posts (e.g., Objective 2.3 on storage fundamentals and Objective 2.4 on networking fundamentals), we’ll provide detailed explanations, practical tips, and exam-focused guidance using a realistic scenario, aligned with VMware’s official vSphere 9.0 documentation https://techdocs.broadcom.com/us/en/vmware-cis/vsphere/vsphere/9-0.html. Let’s get into it and explore the components of a VVF deployment!

Why Identifying VVF Components Matters

A VVF 9.0 deployment integrates multiple components—vCenter Server, ESXi hosts, datastores, networking, and supporting services—to create a robust virtualization environment. Understanding these components and their roles ensures effective deployment, management, and troubleshooting. Objective 4.1, Part 1, evaluates your ability to identify these components in scenarios involving new deployments or expansions. We’ll cover the core components of VVF 9.0, their purposes, and how they interact, preparing you for the exam and real-world administration.

Scenario: Identifying VVF Deployment Components

Let’s use a typical exam scenario: A medium-sized business is deploying a new VMware vSphere Foundation (VVF) 9.0 environment to support 20 virtual machines (VMs) for a mixed workload (10 web servers, 5 databases, and 5 VDI desktops). The deployment includes a 4-host cluster (“VVF-Cluster”) with vSAN for storage, managed by vCenter 9.0. You must: identify the key components of the VVF deployment, including their roles, to ensure the environment supports the workloads with high availability and scalability. This scenario tests your ability to recognize VVF components for the 2V0-16.25 exam.

Identifying VVF Deployment Components

A VVF 9.0 deployment consists of several interconnected components that form the foundation of a virtualized environment. Below is a detailed guide explaining each component’s role and application in the scenario, aligned with VVF 9.0 capabilities.

1. vCenter Server

Purpose: vCenter Server is the centralized management solution for VVF 9.0, providing a single interface to configure, monitor, and manage ESXi hosts, VMs, storage, and networking.

  • Key Characteristics:Role: Manages the “VVF-Cluster” (4 hosts), enabling features like vSphere HA, DRS, and vSAN.
  • Features: Centralized VM provisioning, resource allocation, storage policies, and monitoring. Supports Single Sign-On (SSO) for authentication.

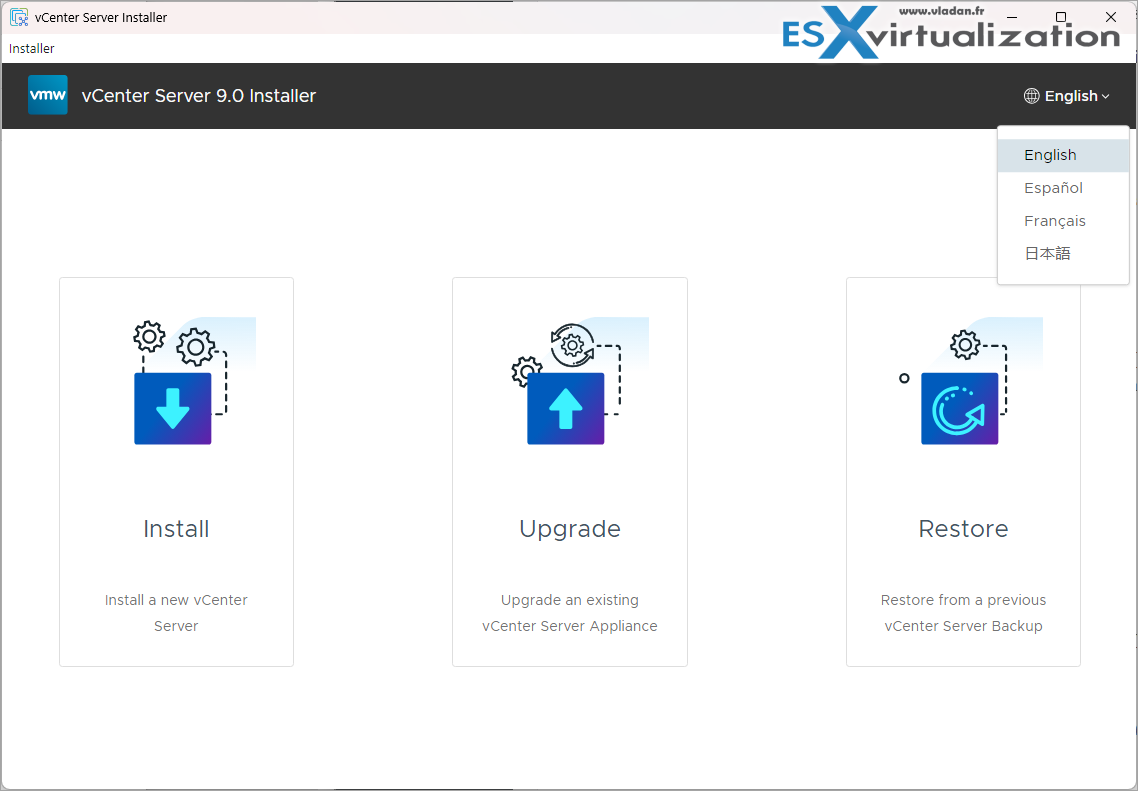

  • Deployment: Deployed as a virtual appliance (vCenter Server Appliance, VCSA) on an ESXi host or external server.
  • Scenario Fit:vCenter Server (e.g., IP 192.168.1.20) manages the 4 hosts and 20 VMs, providing a unified interface for configuring vSAN, networking, and HA.
  • Example: Use vCenter to deploy VMs, apply storage policies for vSAN, and enable HA for the web servers, databases, and VDI desktops.
  • Verification: Access vCenter at https://192.168.1.20/ui using SSO credentials (e.g., [email protected]) and check Hosts and Clusters to confirm management of “VVF-Cluster”.

Study Tip: Memorize vCenter’s role as the central management hub. Practice navigating the vSphere Client in VMware Hands-On Labs https://labs.hol.vmware.com/ to understand its interface.

2. ESXi Hosts

  • Purpose: ESXi hosts are the hypervisors that run VMs and provide compute, memory, and network resources in a VVF deployment.

Key Characteristics:

  • Role: Physical servers running VMware ESXi 9.0, hosting the 20 VMs and contributing storage to vSAN.
  • Features: Supports VM execution, vMotion, vSAN disk groups, and integration with vCenter for management.
  • Configuration: Installed on physical servers (e.g., 192.168.1.10-13 for “VVF-Cluster”) with compatible hardware (e.g., CPUs, NICs, SSDs).
  • Scenario Fit:Four ESXi hosts (e.g., IPs 192.168.1.10-13) form “VVF-Cluster”, each with 1 NVMe SSD (400 GB cache) and 2 SSDs (1 TB capacity) for vSAN, and 10 GbE NICs for networking.
  • Example: Hosts run the 10 web servers, 5 databases, and 5 VDI VMs, with vSAN providing storage and HA ensuring availability.
  • Verification: Check Hosts and Clusters → VVF-Cluster → Hosts in vCenter to confirm all 4 hosts are connected and healthy.

Study Tip: Understand ESXi’s role as the compute and storage foundation. Memorize hardware requirements (e.g., vSAN-compatible disks) for the exam.

3. vSAN Datastore

Purpose: The vSAN datastore aggregates local disks across ESXi hosts to create a shared, software-defined storage pool for VMs.

Key Characteristics:

  • Role: Provides storage for the 20 VMs, supporting features like deduplication, compression, and encryption.
  • Features: Configured with storage policies (e.g., FTT=1, RAID-1/5) for resilience and space efficiency (Objective 2.3, Parts 4-6).
  • Configuration: Enabled on “VVF-Cluster” via Cluster → Configure → vSAN → Services (Objective 2.3, Part 3).
  • Scenario Fit:The vSAN datastore (“vSAN-Datastore”) pools 4 hosts’ disks (1 NVMe SSD + 2 SSDs per host) to provide ~2 TB usable capacity for the web servers, databases, and VDI VMs.
  • Example: Use storage policies to apply RAID-1 for web servers (high availability), RAID-5 for databases (performance), and thin provisioning for VDI VMs (space efficiency).

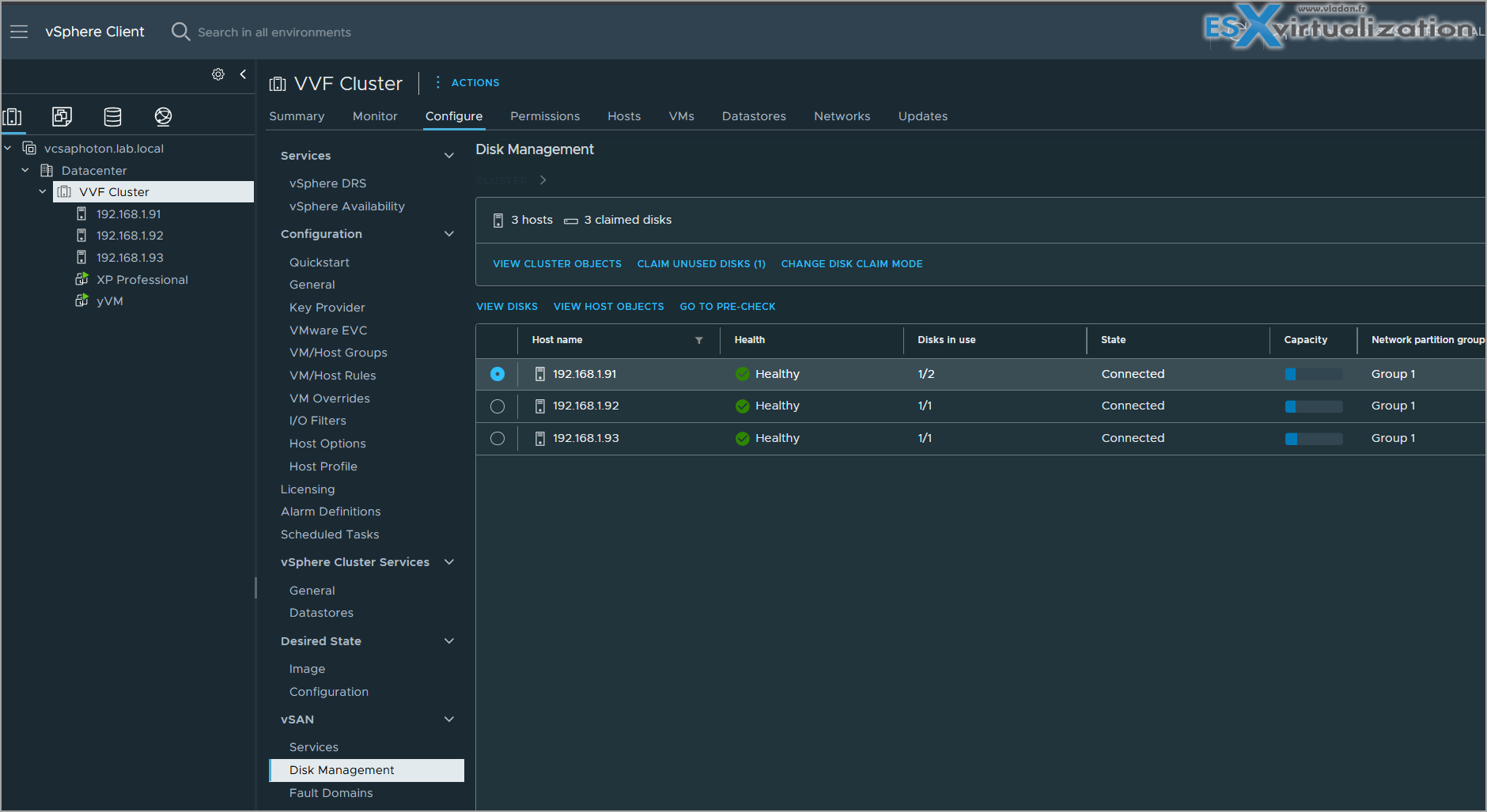

  • Verification: Check Storage → Datastores → vSAN-Datastore for capacity and Cluster → Monitor → vSAN → Health for status.

Study Tip: Memorize vSAN’s role as a shared datastore and its integration with storage policies. Practice checking vSAN health in a lab.

4. Networking Components (vSS, vDS, VMkernel Adapters, Port Groups)

Purpose: Networking components provide connectivity for VMs, ESXi management, vMotion, and vSAN traffic, ensuring isolation and performance.

Key Characteristics:

  • vSphere Standard Switch (vSS): Host-level switch for simple setups, used for management traffic.
  • vSphere Distributed Switch (vDS): Cluster-level switch for VM, vMotion, and vSAN traffic, supporting advanced features like Network I/O Control (NIOC).
  • VMkernel Adapters: Handle system traffic (management, vMotion, vSAN) with dedicated IPs and VLANs.
  • Port Groups: Define VLANs and policies for VM or VMkernel traffic.
  • Configuration: Set up via Networking in vCenter or ESXi (Objective 2.4, Part 1).
  • Scenario Fit:vSS for management (VLAN 10, IPs 192.168.10.10-13).
  • vDS (“vDS-VVF”) for VM traffic (VLAN 20 for web/VDI VMs, VLAN 30 for vMotion, VLAN 40 for vSAN).
  • VMkernel adapters for management (vmk0), vMotion (vmk1), and vSAN (vmk2).
  • Port groups to isolate traffic types (e.g., “VM-Traffic”, “vMotion”, “vSAN”).
  • Verification: Check Networking → vDS-VVF and Hosts → Configure → Networking to confirm port groups, VMkernel adapters, and connectivity.

Study Tip: Review Objective 2.4, Part 1 for networking component details. Practice configuring vDS and VMkernel adapters in a lab.

5. Supporting Services (HA, DRS, Content Library)

Purpose: Supporting services enhance availability, resource management, and VM provisioning in a VVF deployment.

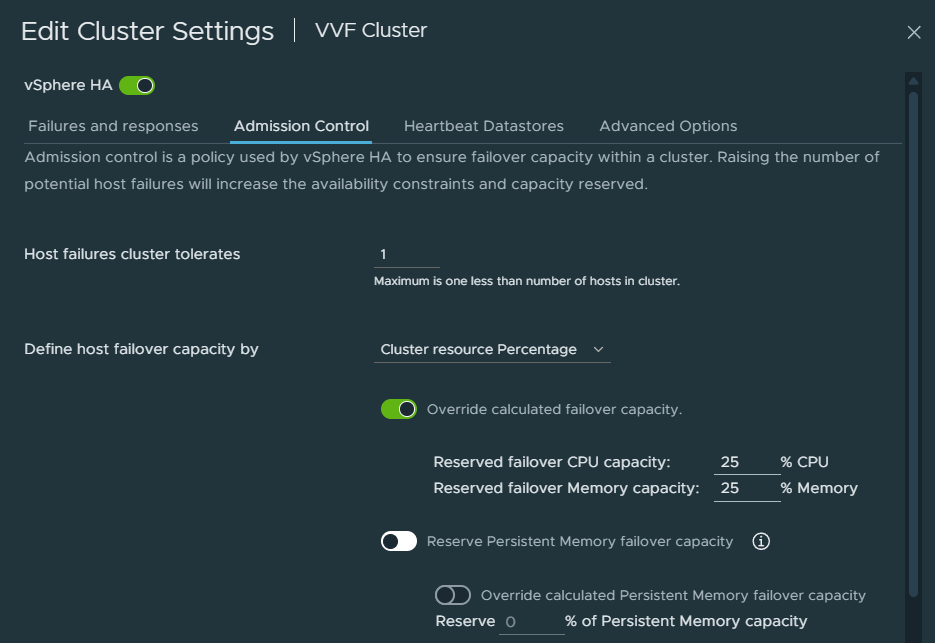

  • Key Characteristics:vSphere High Availability (HA): Restarts VMs on surviving hosts after failures, using vSAN as shared storage.
  • Distributed Resource Scheduler (DRS): Balances VM workloads across hosts for optimal performance.
  • Content Library: Stores VM templates and ISOs for streamlined deployment.
  • Configuration: Enabled via Cluster → Configure → vSphere Availability (HA), vSphere DRS (DRS), and Menu → Content Libraries.
  • Scenario Fit:HA ensures the 20 VMs (web, database, VDI) remain available during host failures.
  • DRS balances the mixed workloads across the 4 hosts for performance.
  • Content Library stores templates for deploying the 10 VDI VMs efficiently.
  • Verification: Check Cluster → Configure → vSphere Availability (HA enabled), vSphere DRS (fully automated), and Content Libraries for templates.

Study Tip: Memorize HA, DRS, and Content Library roles in VVF. Practice enabling them in a lab for the exam.

Exam Scenarios and Tips

Scenarios:Scenario: A VVF deployment lacks centralized management. Which component is missing?
Answer: vCenter Server, which manages hosts and VMs.

Scenario: VMs cannot access shared storage. Which component should you check?
Answer: vSAN datastore, ensuring it’s configured and healthy.

Scenario: VM traffic is not isolated. Which component needs configuration?
Answer: Port groups on vDS, to define VLANs and policies.

Study Tips:

Resources:

Sample Exam Questions

Which VVF component provides centralized management of ESXi hosts?
A. vSAN Datastore
B. vCenter Server
C. vSphere Standard Switch
D. Content Library
Answer: B. vCenter Server.

What is the role of ESXi hosts in a VVF deployment?
A. Manage networking
B. Run VMs and provide compute resources
C. Store VM templates
D. Configure storage policies
Answer: B. Run VMs and provide compute resources.

Which component ensures VM availability after a host failure?
A. vSphere Distributed Switch
B. vSphere HA
C. VMkernel Adapter
D. Thin Provisioning
Answer: B. vSphere HA.

Final Words

Identifying the components of a VVF deployment is a foundational skill for the 2V0-16.25 exam and VVF administration. By understanding vCenter Server, ESXi hosts, vSAN, networking, and supporting services, you can architect robust virtualized environments. The upcoming VCP-VVF Study Guide Page, available at https://www.vladan.fr/vcp-vvf-administrator/, will be released as a PDF to support your preparation. Stay tuned for the next part of Objective 4.1! Happy studying, and good luck on your VCP-VVF journey!
