Today we'll do another chapter of our VMware Certified Professional – VMware vSphere Foundation Administrator (2V0-16.25) study guide series! We follow the official VMware Blueprint for the exam – VMware vSphere Foundation Administrator (PDF). This section is part of the upcoming VCP-VVF Study Guide Page, which will be released as a PDF when completed—check it out at https://www.vladan.fr/vcp-vvf-administrator/.

Today, we’re continuing with Objective 4.3 – VVF: Operate, focusing on Given a scenario, describe the cluster components and deployment options of VMware Cloud Foundation Operations for Logs. VMware Cloud Foundation (VCF) Operations for Logs in VMware vSphere Foundation (VVF) 9.0 is a specialized tool for centralized log collection, analysis, and compliance auditing, critical for troubleshooting and regulatory compliance.

This objective is essential for the 2V0-16.25 exam, testing your ability to understand the architecture and deployment flexibility of VCF Operations for Logs in real-world scenarios. Building on our previous posts (Objective 4.2 on Management and Objective 4.3 on VCF Operations use cases and components), we’ll provide a detailed description of VCF Operations for Logs cluster components and deployment options, practical insights, and exam-focused guidance using a realistic scenario, aligned with VMware’s official vSphere 9.0 and VCF 9.0 documentation (https://techdocs.broadcom.com/us/en/vmware-cis/vsphere/vsphere/9-0.html and https://techdocs.broadcom.com/us/en/vmware-cis/vcf/vcf-9-0-and-later/9-0/infrastructure-operations.html). Let’s get technical and explore VCF Operations for Logs!

Why VCF Operations for Logs Cluster Components and Deployment Options Matter

VCF Operations for Logs in VVF 9.0 provides centralized log management, enabling real-time log analysis, troubleshooting, and compliance auditing for vCenter, ESXi, vSAN, and Kubernetes workloads. Understanding its cluster components (e.g., nodes, logging services) and deployment options (e.g., single-node vs. multi-node, Connected vs. Disconnected modes) is critical for ensuring scalability, high availability, and compliance with security policies, such as air-gapped environments. Objective 4.3 tests your ability to describe these components and select appropriate deployment options based on organizational needs, such as log volume or regulatory requirements. We’ll break down the architecture and deployment choices through a scenario, ensuring you’re prepared for the exam and real-world administration.

Scenario: Describing VCF Operations for Logs Cluster Components and Deployment Options

Let’s use a typical exam scenario: A medium-sized business has a VVF 9.0 environment with a 4-host cluster (“VVF-Cluster”) running 20 VMs (10 web servers, 5 databases, 5 VDI desktops) on a vSAN datastore (“vSAN-Datastore”), managed by vCenter 9.0 (IP: 192.168.1.20, hosts at 192.168.1.10-13). The environment includes vSphere HA, DRS, a vSphere Distributed Switch (“vDS-VVF”), a Supervisor for Kubernetes workloads in “Microservices-Namespace” (Objective 4.1, Part 3), and a VCF Operations instance (“vcf-operations-vm”, IP 192.168.10.54, Objective 4.2, Part 2). The business plans to deploy VCF Operations for Logs to centralize log management for troubleshooting and PCI DSS compliance. The IT team needs you to describe the VCF Operations for Logs cluster components and deployment options to support current operations (logging for 4 hosts, 20 VMs, and Kubernetes workloads) and future growth (adding 2 hosts and 10 VMs), while ensuring high availability and compliance with an air-gapped security policy. This scenario tests your ability to describe VCF Operations for Logs components and deployment options for the 2V0-16.25 exam.

Describing VCF Operations for Logs Cluster Components and Deployment Options

Below, we detail the cluster components and deployment options of VCF Operations for Logs in the context of the scenario, with explanations verified against VMware VCF 9.0 documentation https://techdocs.broadcom.com/us/en/vmware-cis/vcf/vcf-9-0-and-later/9-0/infrastructure-operations.html and relevant web sources (e.g., https://core.vmware.com/vrealize-log-insight, adapted for VCF Operations for Logs 9.0).1.

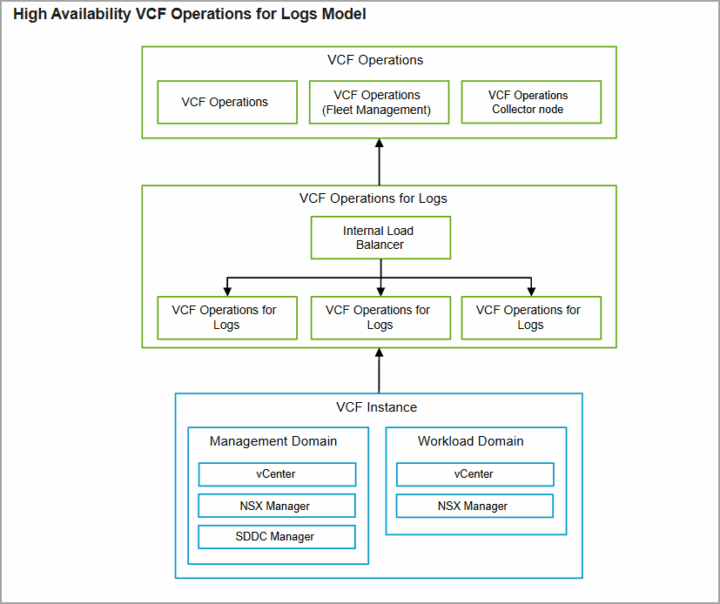

Screenshot from VMware

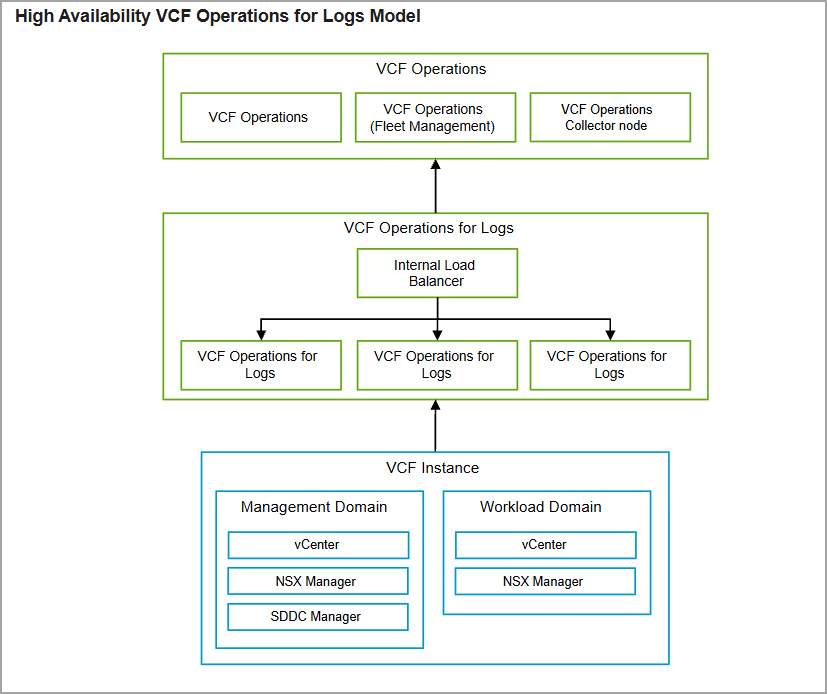

VCF Operations for Logs Cluster Components

Description: VCF Operations for Logs in VVF 9.0 is deployed as a cluster of virtual appliances, with components designed for log collection, storage, analysis, and compliance reporting. The architecture supports scalability and high availability for robust log management.

Cluster Components:

Primary Node:

Function: The main node hosting the VCF Operations for Logs UI, log ingestion engine, and core services, including log analytics and compliance reporting.
Role: Collects and processes logs from vCenter, ESXi, vSAN, and the Supervisor, coordinating cluster operations and providing dashboards for log insights.
Scenario Relevance: The planned “vcf-logs-vm” (e.g., IP 192.168.10.55) will serve as the Primary Node, collecting logs from “VVF-Cluster” (4 hosts, 20 VMs) and “Microservices-Namespace” for troubleshooting and PCI DSS compliance.

Worker Node (Optional):

  • Function: Scales log storage and processing capacity for high log volumes or large environments.
  • Role: Offloads log indexing and query tasks from the Primary Node, improving performance for increased log sources (e.g., additional VMs or hosts).
  • Scenario Relevance: For future growth (adding 2 hosts and 10 VMs, totaling 6 hosts and 30 VMs), a Worker Node is recommended to handle increased log volume.

Integrated Forwarder (Optional):

  • Function: Acts as a lightweight log collector for remote or distributed environments, forwarding logs to the Primary or Worker Nodes.
  • Role: Reduces network load and supports air-gapped environments by collecting logs locally for offline transfer.
  • Scenario Relevance: An Integrated Forwarder is required for the air-gapped security policy, enabling log collection without internet connectivity.
  • Log Storage Services:Function: Stores logs using a high-performance indexing engine (e.g., based on Elasticsearch or similar technology).
  • Role: Runs on Primary and Worker Nodes, ensuring fast log retrieval and long-term retention for compliance (e.g., PCI DSS).
  • Scenario Relevance: Supports log retention for “vSAN-Datastore” and Kubernetes workload logs, with scalability for additional VMs.

Analytics and Query Services:

  • Function: Processes log data, generates real-time queries, and provides dashboards for troubleshooting and compliance auditing.
  • Role: Enables log searching, filtering, and visualization (e.g., identifying security incidents or compliance violations).
  • Scenario Relevance: Used to analyze logs from web server VMs and Kubernetes pods for troubleshooting performance issues or auditing PCI DSS compliance.

Verification:

  • Deploy the VCF Operations for Logs OVA (e.g., Operations-Logs-Appliance-9.0.0.0.24695810.ova) from vcf.broadcom.com to “VVF-Cluster”.
  • Configure the Primary Node (192.168.10.55, Medium size) and access the UI at https://192.168.10.55.
  • Navigate to Administration → Cluster Management and confirm “vcf-logs-vm” is listed as the Primary Node with active Log Storage and Analytics Services.
  • Verify integration with vCenter (192.168.1.20) under Administration → Configuration → vCenter Integration.

Scenario Example: Describe the Primary Node (“vcf-logs-vm”) for logging 4 hosts and 20 VMs, and propose adding a Worker Node for scalability and an Integrated Forwarder for air-gapped compliance to support 6 hosts and 30 VMs.

Study Tip: Memorize the roles of Primary Node, Worker Node, Integrated Forwarder, Log Storage, and Analytics Services. Practice checking cluster status in VMware Hands-On Labs https://labs.hol.vmware.com/.

2. VCF Operations for Logs Deployment Options

Description: VCF Operations for Logs offers flexible deployment options to meet scalability, availability, and security requirements, including single-node vs. multi-node deployments, Connected vs. Disconnected modes, and FIPS compliance. These options ensure alignment with organizational needs, such as log volume or air-gapped policies.

Deployment Options:

Single-Node Deployment:

  • Description: A single Primary Node hosting all services (UI, log ingestion, storage, analytics).
  • Use Case: Suitable for small to medium environments (<1000 VMs, <10 hosts) with moderate log volumes (e.g., <10 GB/day).
  • Configuration:Deploy the VCF Operations for Logs OVA (e.g., logs-appliance-9.0.ova) from vcf.broadcom.com.
  • Assign IP (e.g., 192.168.10.55), storage to “vSAN-Datastore”, and a CA-signed certificate (Objective 4.2, Part 3).
  • Node size options: Small (4 vCPUs, 16 GB RAM, 1 TB storage) or Medium (8 vCPUs, 32 GB RAM, 2 TB storage).
  • Scenario Relevance: A single-node deployment (Medium size) is sufficient for current logging needs (4 hosts, 20 VMs, Kubernetes workloads) but lacks HA and air-gapped compliance.

Multi-Node Deployment:

  • Description: Includes a Primary Node and optional Worker Node(s) for scalability, with Integrated Forwarders for distributed logging.
  • Use Case: Ideal for production environments with high log volumes (>10 GB/day) or requiring HA through load-balanced log ingestion.
  • Configuration:Deploy additional Worker Nodes (e.g., 192.168.10.56, Medium or Large size: 16 vCPUs, 64 GB RAM, 4 TB storage) via the OVA.
  • Configure in Administration → Cluster Management → Add Worker Node.
  • Deploy Integrated Forwarders (e.g., 192.168.10.57, Small size) for air-gapped environments.
  • Scenario Relevance: Deploy a Worker Node for scalability (6 hosts, 30 VMs) and an Integrated Forwarder for air-gapped logging.

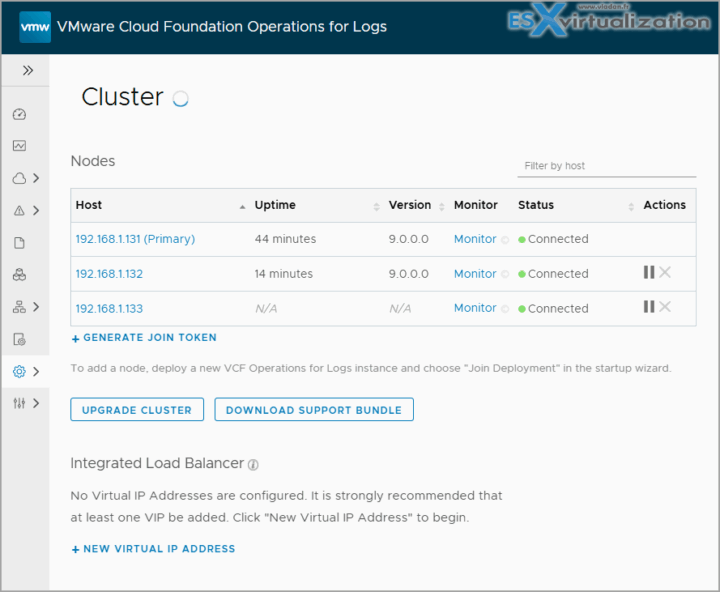

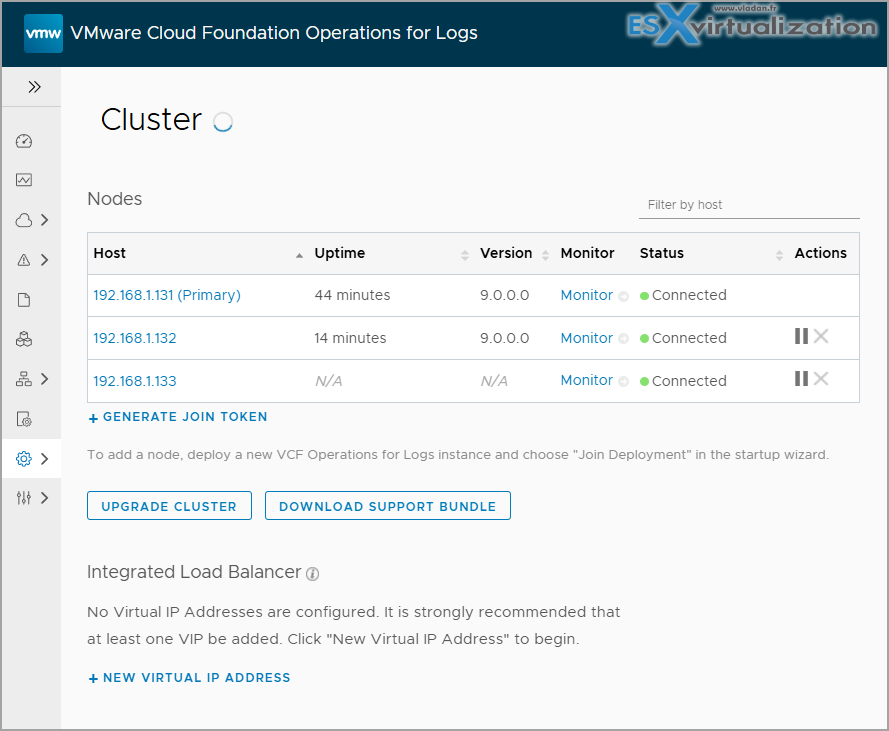

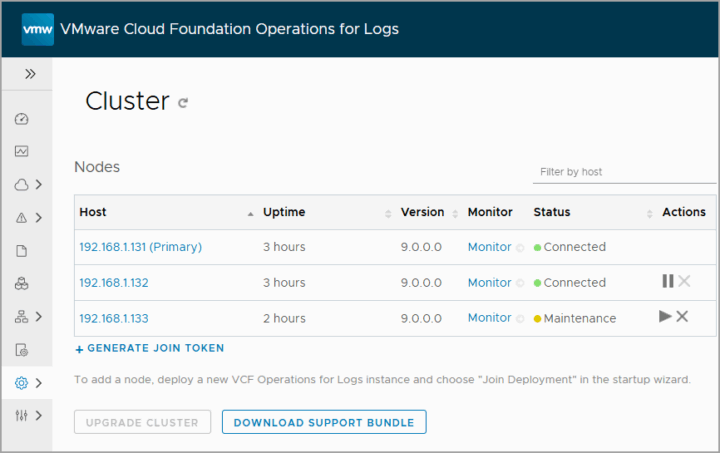

Example of 3-nodes cluster

Connected Mode:

  • Description: The VCF Operations for Logs instance connects to vcf.broadcom.com for automatic license updates, content pack downloads (e.g., PCI DSS), and telemetry.
  • Use Case: Simplifies management in environments with internet access, enabling seamless updates and compliance reporting.
  • Configuration:Register with the VCF Business Services console using an activation code (Objective 4.2, Part 2).
  • Enable connectivity in Administration → Configuration → Connectivity.
  • Scenario Relevance: Incompatible with the air-gapped security policy.

Disconnected Mode:

  • Description: Operates without internet access, using manual license file uploads every 180 days and offline content pack imports.
  • Use Case: Required for air-gapped environments to meet strict security policies.
  • Configuration:Set Disconnected Mode in Administration → Configuration → Registration.
  • Manually upload license files via Administration → Licensing → Add License and content packs (e.g., PCI DSS) via Content Management → Import Pack.
  • Use Integrated Forwarders to collect logs offline and transfer via secure methods (e.g., USB).
  • Scenario Relevance: Deploy in Disconnected Mode with an Integrated Forwarder to comply with the air-gapped policy.

FIPS Compliance:

  • Description: Enables Federal Information Processing Standards (FIPS) for cryptographic operations, ensuring compliance with security regulations.
  • Use Case: Required for environments with strict security standards, such as PCI DSS or air-gapped setups.
  • Configuration:Enable FIPS during OVA deployment or post-deployment in Administration → Configuration → FIPS Compliance.
  • Scenario Relevance: Enable FIPS for the air-gapped environment and PCI DSS compliance.

Verification:

  • In the VCF Operations for Logs UI (https://192.168.10.55), check Administration → Cluster Management to confirm node roles (Primary, Worker, Integrated Forwarder).
  • Verify mode (Connected/Disconnected) in Administration → Configuration → Registration.
  • Confirm FIPS status in Administration → Configuration.
  • Ensure log collection from “VVF-Cluster” and “Microservices-Namespace” in Log Analytics → Dashboards.

Scenario Example: Describe a single-node deployment (“vcf-logs-vm”, Medium size, Connected Mode) for logging 4 hosts and 20 VMs, and recommend a multi-node deployment with a Worker Node (192.168.10.56), Integrated Forwarder (192.168.10.57), Disconnected Mode, and FIPS enabled to support 6 hosts, 30 VMs, and air-gapped PCI DSS compliance.

Study Tip: Understand the configuration steps for single vs. multi-node deployments and Connected vs. Disconnected modes. Practice deploying nodes and enabling FIPS in VMware Hands-On Labs https://labs.hol.vmware.com/.

3. Applying Components and Options to the Scenario

Detailed Process:

Current State:

  • Components: No VCF Operations for Logs deployed yet; planning a Primary Node (“vcf-logs-vm”, 192.168.10.55).
  • Deployment: Proposed single-node, Medium size, Connected Mode, non-FIPS.
  • Suitability: Adequate for initial logging of 4 hosts and 20 VMs but lacks HA and air-gapped compliance.

Proposed Changes:

  • Deploy Primary Node: Deploy the VCF Operations for Logs OVA to “VVF-Cluster” (IP: 192.168.10.55, Medium size).In vCenter (https://192.168.1.20/ui), deploy the OVA, configure vCenter integration, and apply a CA-signed certificate (Objective 4.2, Part 3).
  • Add Worker Node: Deploy a Worker Node (192.168.10.56, Large size) for scalability.Configure in Administration → Cluster Management → Add Worker Node to handle logs for 6 hosts and 30 VMs.
  • Add Integrated Forwarder: Deploy an Integrated Forwarder (192.168.10.57, Small size) for air-gapped logging.Configure in Administration → Cluster Management → Add Forwarder for offline log collection.
  • Switch to Disconnected Mode: In Administration → Configuration → Registration, set Disconnected Mode and upload license files and PCI DSS content packs manually from vcf.broadcom.com.
  • Enable FIPS: Enable FIPS in Administration → Configuration → FIPS Compliance for air-gapped security and PCI DSS compliance.

Verification:

  • Confirm all nodes (Primary, Worker, Integrated Forwarder) in Administration → Cluster Management.
  • Verify Disconnected Mode and FIPS status in Administration → Configuration.
  • Check log collection from “VVF-Cluster” (6 hosts, 30 VMs) and “Microservices-Namespace” in Log Analytics → Dashboards, ensuring PCI DSS compliance reports are generated.

Scenario Example: Propose a multi-node VCF Operations for Logs deployment with a Primary Node (192.168.10.55), Worker Node (192.168.10.56), and Integrated Forwarder (192.168.10.57) in Disconnected Mode with FIPS enabled to support 6 hosts, 30 VMs, and air-gapped PCI DSS compliance.

Study Tip: Practice deploying Worker Nodes and Integrated Forwarders in a lab. Understand log storage requirements and FIPS impact for the exam.

Exam Scenarios and Tips

Scenarios:

Scenario: A VVF environment needs uninterrupted log collection during a Primary Node failure. Which component is needed?
Answer: A Worker Node to provide load-balanced log ingestion and ensure continuity.

Scenario: An air-gapped VVF environment requires log collection. Which deployment option is needed?
Answer: Disconnected Mode with an Integrated Forwarder for offline log aggregation.

Scenario: A VVF cluster grows to 10 hosts with high log volume. Which component ensures scalability?
Answer: A Worker Node to handle increased log processing and storage.

Study Tips:

Resources:

Sample Exam Questions

What is the role of the Primary Node in VCF Operations for Logs?
A. Forwards logs from remote sites
B. Hosts the UI and log analytics services
C. Scales storage for large environments
D. Manages vSAN encryption
Answer: B. Hosts the UI and log analytics services.

Which deployment option is required for an air-gapped VVF environment with VCF Operations for Logs?
A. Single-node, Connected Mode
B. Multi-node, Disconnected Mode
C. Single-node, FIPS-disabled
D. Multi-node, vSAN-only
Answer: B. Multi-node, Disconnected Mode.

Which component supports increased log processing in a VVF cluster with 10 hosts?
A. Integrated Forwarder
B. Worker Node
C. Primary Node
D. vCenter Adapter
Answer: B. Worker Node.

Final Words

Understanding the cluster components and deployment options of VCF Operations for Logs is a critical skill for the 2V0-16.25 exam and VVF 9.0 administration. By leveraging Primary Nodes, Worker Nodes, and Integrated Forwarders in single- or multi-node deployments with Connected or Disconnected modes, you can meet log scalability, high availability, and air-gapped compliance requirements. We follow the official VMware Blueprint for the exam – VMware vSphere Foundation Administrator (PDF). Most of the work will be done here on this blog, and, in the end, the document will be released as a PDF, like the previous versions, at https://www.vladan.fr/vcp-vvf-administrator/. Stay tuned for the next part of Objective 4.3! Happy studying, and good luck on your VCP-VVF journey!
