What is ESXi Compatibility Checker?

By | Last Updated:

Shares

VMware has a free tool called ESXi Compatibility Checker which can check your hardware if it's still supported by VMware. ESXi Compatibility Checker is a Free utility (a Fling) which has been released recently. We might see an integration directly to the vCenter server in future releases of vSphere. That would be nice.

But for now, it's an independent free tool or rather a script. The ESXi Compatibility Checker presents itself as a python script that can validate VMware hardware compatibility and upgrade issues of ESXi.

To determine the compatibility of existing hardware is not a simple task. There are IO devices listed on VMware HCL, full servers and other devices, but it needs quite a work to gather all those information. It's more convenient for the admin than to compare multiple web pages to the admin's hardware, to execute a script which shows the results.

Quote:

ESXi Compatibility Checker provide a simple and easy way to collect server and IO device details from ESXi and provide a command line interface to validate their VMware compatibility and upgrade issues. Users no longer need to understand compatibility details or manually compare the dataset to find out compatibility or upgrade issues. The Fling can generate a compatibility report for many ESXi managed by a VC with a simple command.

The tool is freely available from VMware Flings website. You'll need a python package too, and you can download it here.

Requirements

For now, you'll need an internet access from the machine that you'll want to run this script. Why? It's because you must download the dependencies from the internet. But as I've seen a recent comment from ESXi Compatibility Checker page, the developer, Heejeong Shin is working on an “offline” version of this utility.

So in my case I went to the Python website and downloaded the installer.

How to Install?

You need to install the python and also the dependent packages. In my case I had to download the OpenSSL library for Python and also Vim. You can do this via command line window and with this command:

pip install pyopenssl

and

pip install pyVim

Once done you're ready to go.

How to Execute?

First, Install Python and required packages, then download the script (compchecker.zip) > Run this command from extracted folder:

*********************************************************************

EasyVirtDC Scope for VMware vSphere – optimization, capacity planning, and cost management. Download FREE Trial Here.

  • Tracks the performance of VMs with a summary view of the resources and metrics in degradation.
  • Easily improve the performance of your infrastructure.
  • DC Scope is affordably priced per VM.

*********************************************************************

compchecker.py -s vc-or-esx-hostname -u username

If you need help just run:

compchecker.py -h

Check the full instructions and how to at this page. That's all folks.

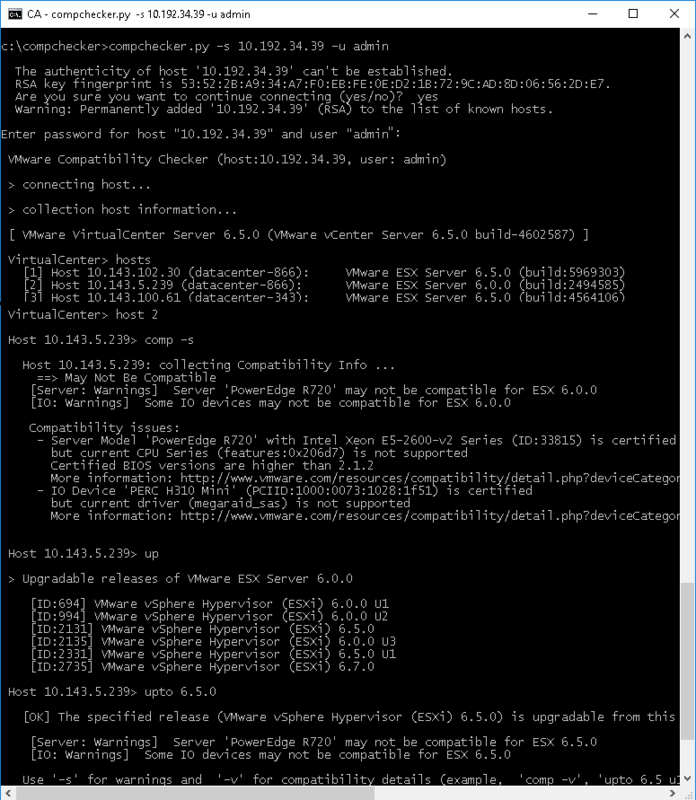

Screenshot from VMware Labs…

Unfortunately, the tool did not work for me, as expected. Even with installing the dependencies (pyVim) I still received an error “No module named ‘pyVim'. Any thoughts? I was trying to run it from a Windows 10 machine. I'll update this post when (and if ) I'll succeed.

VMware Fling site is an excellent resource for Free VMware tools. Some of them make it to the next release of VMware vSphere, for everyone's benefit.

Source: VMware Labs

More from ESX Virtualization:

Stay tuned through RSS, and social media channels (Twitter, FB, YouTube)

Vote !
Shares
  • ESXi Compatibility Checker

Summary

There is a free tool at VMware Labs called ESXi Compatibility Checker. It is a Python script which check your ESXi for eventual upgrade problems or if your ESXi is still compatible.

Sending
User Rating 0 (0 votes)

About Vladan SEGET

This website is maintained by Vladan SEGET. Vladan is as an Independent consultant, professional blogger, vExpert x11, Veeam Vanguard x5, VCAP-DCA/DCD, VCP, ESX Virtualization site has started as a simple bookmarking site, but quickly found a large following of readers and subscribers.

Connect on: Facebook. Feel free to network via Twitter @vladan.

Comments

  1. Daniel says

    Hi Vladan,
    ”
    Are you behind a proxy? I had the same issue but I resolved this with the arg “–proxy”

    Like this:
    python -m pip install pyopenssl –proxy=http://yourproxy.com:80

  2. Alex says

    That’s what you need to know about Python3 on Windows:

    C:\Users\alexander>pip3 list
    Fatal error in launcher: Unable to create process using ‘””c:\program files\python36\python.exe” “C:\Program Files\Python36\Scripts\pip3.exe” list’

    C:\Users\alexander>”c:\program files\python36\python.exe” “C:\Program Files\Python36\Scripts\pip3.exe” list
    Package Version
    ———- ——-
    pip 10.0.0
    setuptools 39.0.1
    You are using pip version 10.0.0, however version 10.0.1 is available.
    You should consider upgrading via the ‘python -m pip install –upgrade pip’ command.

    C:\Users\alexander>python -m pip install –upgrade pip
    Collecting pip
    Using cached https://files.pythonhosted.org/packages/0f/74/ecd13431bcc456ed390b44c8a6e917c1820365cbebcb6a8974d1cd045ab4/pip-10.0.1-py2.py3-none-any.whl
    Installing collected packages: pip
    Found existing installation: pip 10.0.0
    Uninstalling pip-10.0.0:

    You are using pip version 10.0.0, however version 10.0.1 is available.
    You should consider upgrading via the ‘python -m pip install –upgrade pip’ command.

    It’s just broken 😀

  3. Recep YUKSEL says

    Hi Mr. Vladan,

    This Windows 10 python solution of the problem, Python installation setup automatic installation, Python setup first screen select to Customize Installation and second screen select all options and install python.

    Successfully Python install and first pip module installation command run this users default folder.

    C:\Users\Username\python -m pip install pyvmomi
    C:\Users\Username\python -m pip install crypto
    C:\Users\Username\python -m pip install pyopenssl

    and try this

    C:\compchecker\compchecker.py -s vc-or-esx-hostname -u username

    Best Regards.

    • Recep YUKSEL says

      Hi Mr. Vladan,

      First command add this post, Python setup third page (Advance Options) pages select to Add Python to environment veriables select and install Python.

      Best regards.

    • Vladan SEGET says

      Hi Recep,
      Thanks for your comment and the solution. I hope it helps not only me. If you have any article/topic suggestion, feel free to get in touch with me…-:)
      Best
      Vladan

  4. Sundevil says

    I am getting same error message. No module named ‘pyVim’. I tried everything suggested here and nothing seems to work.

  5. Pascal says

    I was getting the same error message: “No module named ‘pyVim’” After a bit research i get the information that was a change in the Repository and the module name is “pyvim” and not “pyVim”. I changed the module name in the “hostaccess.py” in the folder: “tools” and it works

    • Sunil Somasekharan says

      please try import pyvim from the python console and if it is not reporting any error then there is no issue with module installation…please use pyvim not pyVim
