vSphere 6 Features – Mark or Tag local disk as SSD disk

By Vladan SEGET | Last Updated: October 8, 2017

Shares

In vSphere 6 you can mark local disk as SSD disk (or we can say tag). If you're planning to activate VSAN, you'll need some SSDs, at least one per disk group. And you'll need at least one disk group per host. There is a new feature which is part of the VMware VSAN 6.0 announced yesterday and this function allows to tag (mark) disk as SSD from within the UI via the vSphere Web client.

Not via the vSphere Windows client. I think it's a pretty cool and I wanted to show you the screenshot from my lab. Previous release of VSAN (1.0) present in vSphere 5.5 needed to go to the CLI to do that. If you haven't read the whole detailed post about VSAN 6.0 you missing out.

This is still the beta build I'm using as the vSphere 6 bits haven't been available yet. I'm running nested lab in my VMware Workstation 11. The lab runs on my desktop Whitebox with 64 Gb RAM. I know it's a bit overkill, but I struggled with RAM in my previous built so I went to the maximum straight away.

I'm showing the UI with new web client which is way faster than the one in 5.5. Still, you'll need a Flash to run it… -:(, but something tells me that it will change soon and HTML 5 only UI will definitely sell us all to use Web based UI only.

So How to Mark local disk as SSD disk ?

Connect to your vCenter > Go to Hosts and clusters > Select a Host > Select disk which you want to tag as SSD. You can click to enlarge.

tag local disk as SSD disk

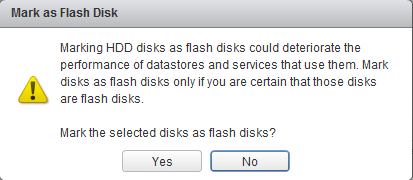

This brings a small warning window saying that you might deteriorate the performance of datastores and services that use them, but if you're sure on what you're doing, then go ahead and validate on Yes button.

tag a disk as ssd

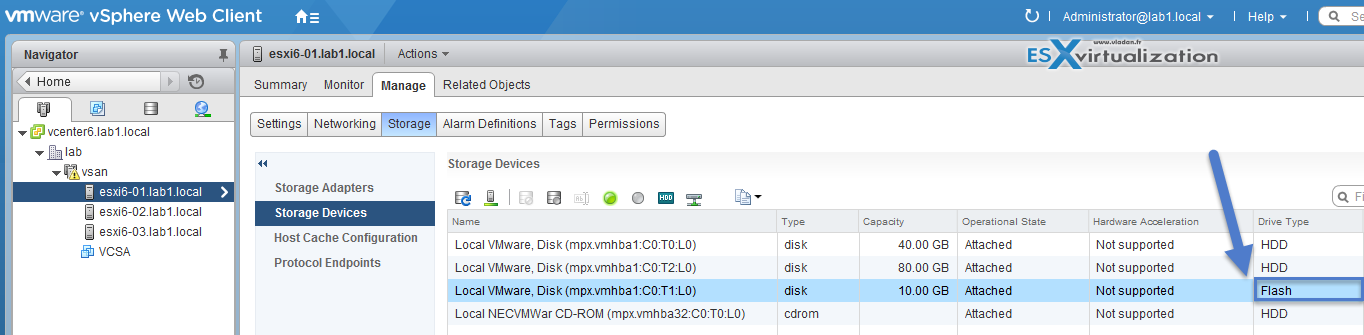

As a result, after few seconds (without even refreshing the client's page) the disk turns into a SSD disk… It's magic, no?

How to tag a disk as SSD in VMware vSAN 6.0

It works also the other way around!

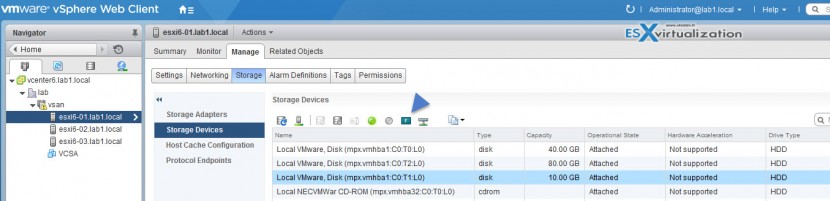

When you need to tag a disk recognized as SSD disk back to HDD, you can. The icon is not the same… check this out.

TAG disk as HDD in VMware VSAN

So when selecting the SSD disk and clicking the HDD button, you'll get another warning window telling you this

TAG disk as HDD in VMware VSAN

And again, you'll wait few seconds and the disk became a “normal” HDD… very convenient when creating a lab environment. But I'm pretty sure that the VMware folks did not enable this feature to play with it in the lab but to save precious time during deployments!

See all the small buttons and icons

You might wonder what's all the icons present on the bar along with the Tagging button, no?

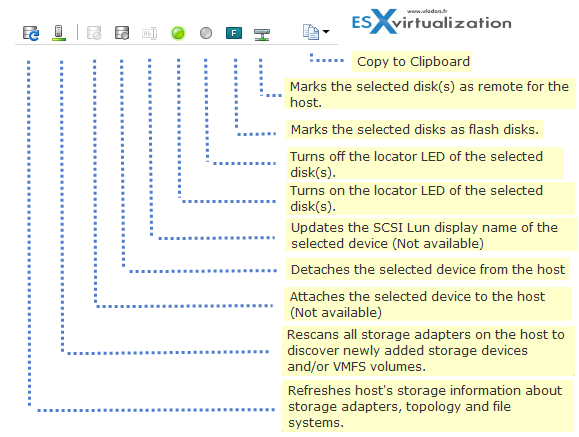

I took another screenshot showing what else you'll find there. In VSAN 6.0 you can first identify the disk through the UI and also on the physical system. In fact it's possible to turn the magnetic-disk's LED ON or OFF… so you can identify the disk in case you want to replace it.

How to tag a hdd as SSD in VSAN 6

ESXi is sometimes unable to determine whether certain SAS devices are local or remote, that's why the button to tag selected disk as local is useful too as otherwise you would have again had to go to the cli and change the claimrule so the disk would be seen as local for your host.

The Taggin (marking) disks as SSD or HDD is very usefull. It's a time saver. And this is just the first function (very usefull IMHO) that is present in VSAN 6.0. We will continue to report on other functions/features of VMware VSAN 6.0 in other articles on this blog. Stay tuned. Check the vSphere 6.0 page back for updates! Now when the NDA is over we can talk freely on what in (even if the final release is not available).

Did you like this post? Don't hesitate to share with your peers via your social media channels.

More of vSphere 6.0:

  • vSphere 6 Page
  • vSphere 6 Features – New Config Maximums, Long Distance vMotion and FT for 4vCPUs
  • vSphere 6 Features – vCenter Server 6 Details, (VCSA and Windows)
  • vSphere 6 Features – vSphere Client (FAT and Web Client)
  • vSphere 6 Features – VSAN 6.0 Technical Details
  • ESXi 6.0 Security and Password Complexity Changes
  • How to install VMware VCSA
  • vSphere 6 Features – Mark or Tag local disk as SSD disk – (this post)
Shares
5/5 - (1 vote)

| Filed Under: Server Virtualization Tagged With: vSphere 6 Features - Mark or Tag local disk as SSD disk

About Vladan SEGET

This website is maintained by Vladan SEGET. Vladan is as an Independent consultant, professional blogger, vExpert x16, Veeam Vanguard x9, VCAP-DCA/DCD, ESX Virtualization site has started as a simple bookmarking site, but quickly found a large following of readers and subscribers.

Connect on: Facebook. Feel free to network via Twitter @vladan.

Comments

  1. walter baziuk says

    December 21, 2015 at 10:55 am

    good post, but fails on my system

    i am running the latest 6.0u1 patches

    when i do this i get a status error

    “cannot change the host configuration”

    i am logged in a root admin

    any suggestions

    • Vladan SEGET says

      December 21, 2015 at 11:09 am

      And the logs says what … ? Digg the logs first, perhaps you’ll find out? When I tested this on 6.0 GA back in march it worked.

    • Behnood Moradi says

      March 24, 2016 at 10:09 am

      hi did you use that disk as syslog location?

  2. walter baziuk says

    December 21, 2015 at 5:26 pm

    the log states

    Vpxa: cannot mark disk
    unable to reconfigure the disk claim rules.
    the disk is in use

    Vcenter is the only client using the disk

    how can i get this disk marked as if i shut down vCenter , then i wont be able to run the gui command

  3. cris says

    September 26, 2018 at 10:45 am

    wrong!
    Flash disk is one thing, SSD is another thing.
