Microsoft Windows Admin Center is GA – Free Download

Microsoft surprisingly released Project Honolulu that we recently wrote about here and here, under a new name – Windows Admin Center. This sounds good, but not only sounds, we like this project so much that we decided to write and promote this product once more time.

What is Windows Admin Center and why we like it so much? Well, We like product which is useful for admins, products which are fast, enjoyable to work with, and innovative.

Windows Admin center (previously called project Honolulu) has all this. It is flexible, lightweight browser-based locally-deployed platform and solution for Windows Server management scenarios for troubleshooting, configuration, and maintenance.

It is a simple MSI file which is very lightweight. The solution has two main components which installs automatically:

1. Getaway
2. Web Server

You can install the solution either as a desktop mode on Windows 10 (and use https://localhost:[port]) to access it. Or you can install it as a Gateway mode on Windows Server 2016 (or 1709) where you can access remotely from another machine via web browser (https://servername)

The Windows Admin Center gateway, when published to DNS and given access through corresponding corporate firewalls, lets you securely connect to, and manage, your servers from anywhere with Microsoft Edge or Google Chrome.

Traffic from the browser to the Windows Admin Center gateway uses HTTPS. Traffic from the gateway to managed servers is standard PowerShell and WMI over WinRM.

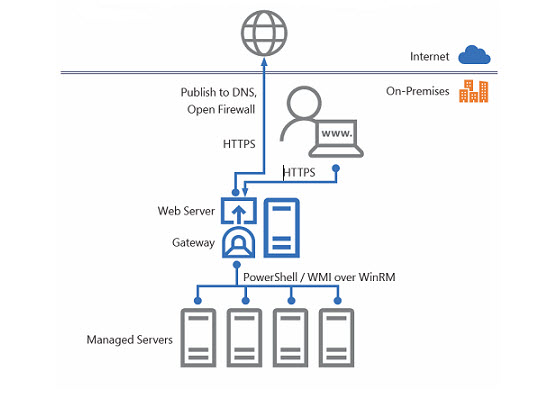

The Architecture:

The tool, provided as MSI package, is installed in few minutes. It would be useless to provide screenshots from the installation as it only takes few min to install and the only option you have is the port number, which you can customize, in case you're running something else on that particular port.

Installation options:

• Local (W10 only)
• Gateway (WS 2016)
• Directly on Management Server

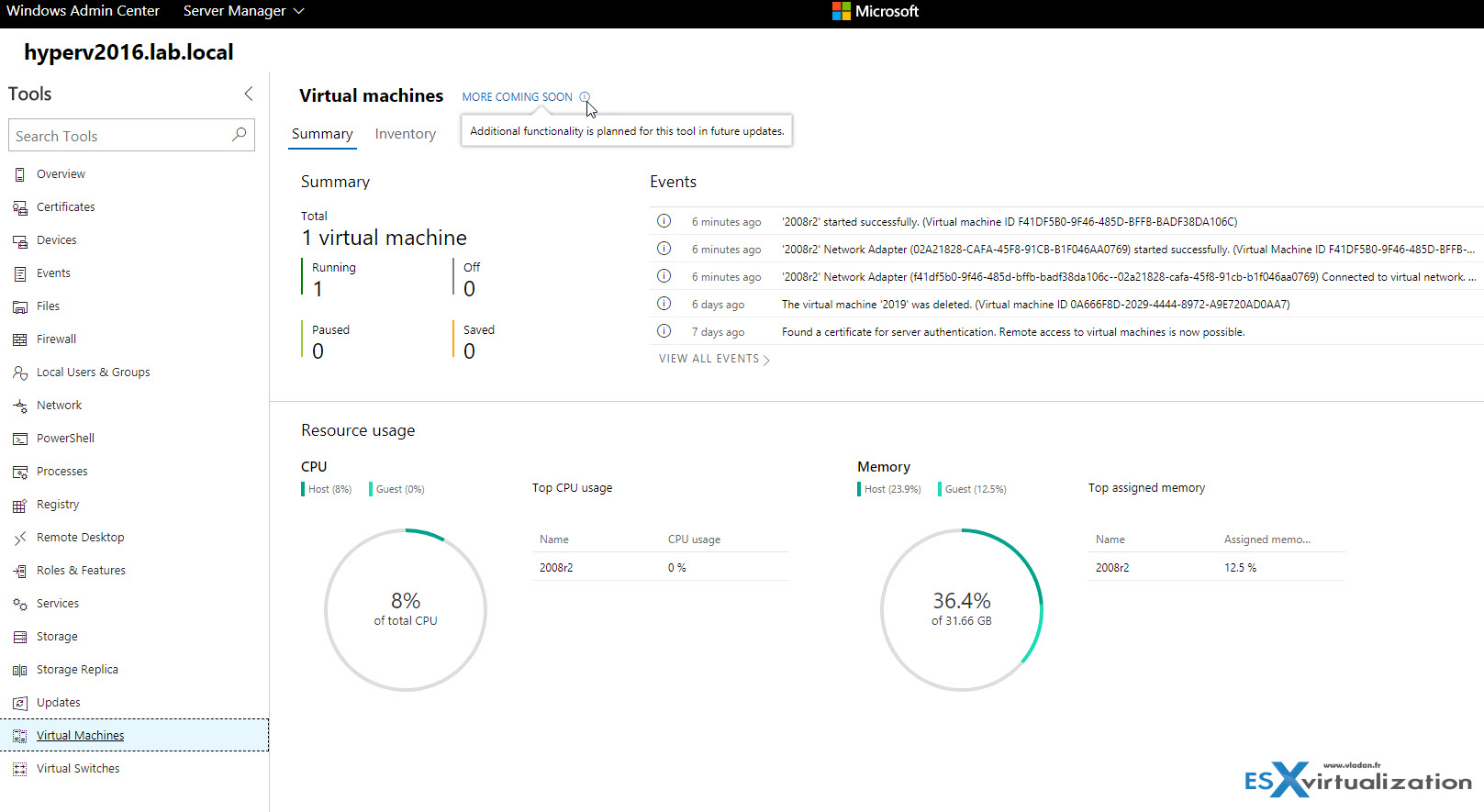

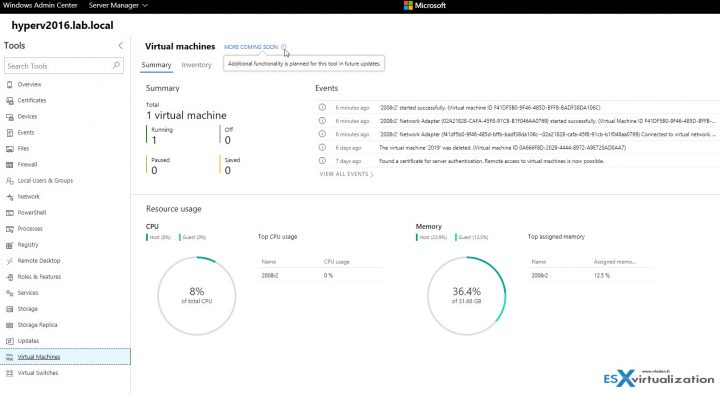

In the lab, I installed it on my management workstation and connected remotely to some of my Windows Servers. Here is my remote connection to my Hyper-V host with 1 Test VM…. As you can see, while GA, the tool has still “More to come”… and future releases will have more features integrated in it.

Note:

Windows Admin Center requires PowerShell features that are not included in Windows Server 2012 and 2012 R2. If you will manage Windows Server 2012 or 2012 R2 with Windows Admin Center, you will need to install Windows Management Framework (WMF) version 5.1 or higher on those servers.

Type $PSVersiontable in PowerShell to verify that WMF is installed, and that the version is 5.1 or higher.

If WMF is not installed, you can download WMF 5.1.

Windows Admin Center is designed for managing a single server or cluster. You can also manage Windows 10 machines with it.

It complements but does not replace existing Microsoft monitoring and management solutions, such as Remote Server Administration Tools (RSAT), System Center, Operations Management Suite, Intune, or Azure Stack.

Extensibility of Windows Admin Center

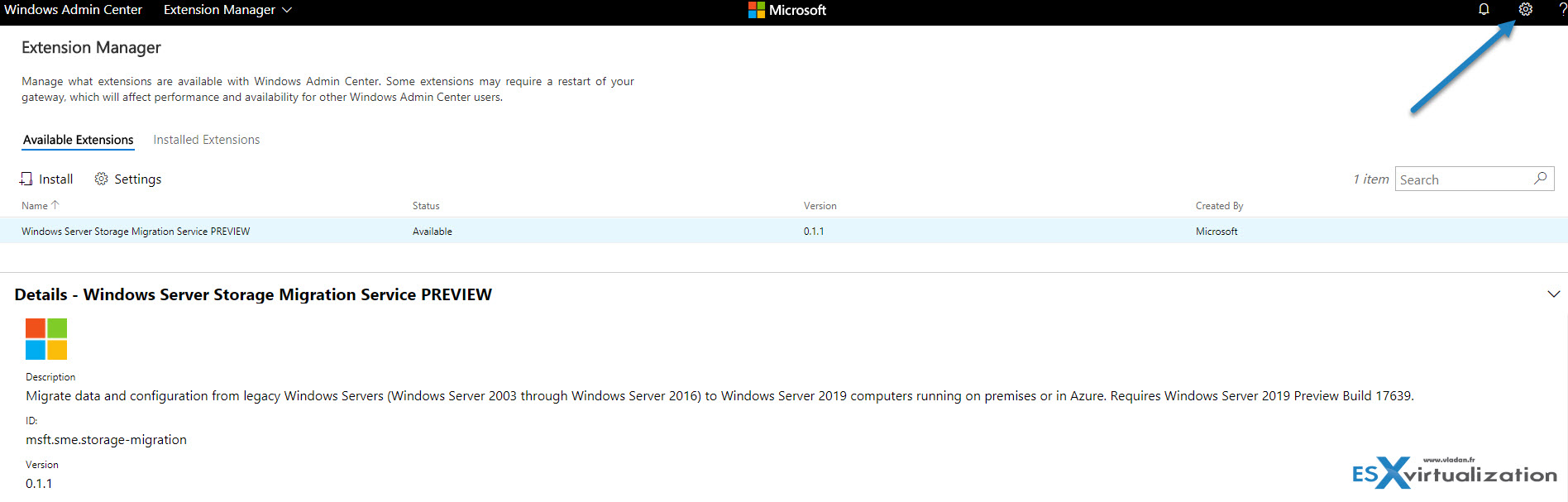

When you click on the gear icon on the right-top, you can click on the Extesion manager to see an overview and future. There is already one extension (in preview) from Microsoft, but I'd imagine the whole ecosystem of partners jumping in and providing their own extensions and plugins, as well as huge Microsoft community.

This will succeed, don't you think?

Wrap up:

It's certainly a very nice tool which might become the one moving forward, instead of those 20 consoles which every admin uses right now to manage Windows servers. In addition, the system allows managing Windows 10 computers, which are more and more present within the enterprise.

For admins which are using System Center, the Windows Admin Center is complementary to System Center, but System center as such is not required.

Links: Windows Admin Center
