In our previous post, we discussed updating a StarWind VSAN for VMware running on Linux. We have updated the StarWind VSAN software from a software repo, but there is also an option for isolated environments. The post can be found here – How to update StarWind VSAN for VMware vSphere.
The update is easy to proceed with when following up on those guidelines. All you have to remember is the user's password (default login/pass combinations are user/rds123RDS) if you have changed them and you should as it is a best practice.
The access to the Linux VM is via a web-based console based on Cockpit and you have a menu where you can access directly the console via web-based UI which is nice.
Note: you might want to check How to use Cockpit to Manage Linux Server with Ease or our video How to Install Cockpit Navigator.
Now once we have updated the StarWind product, we must also update the underlying OS which is CentOS.
With CentOS there is a yum package manager so all we need to do is to launch this:
Show information about available update/packages, run this:
sudo yum check-update
Issue the command:

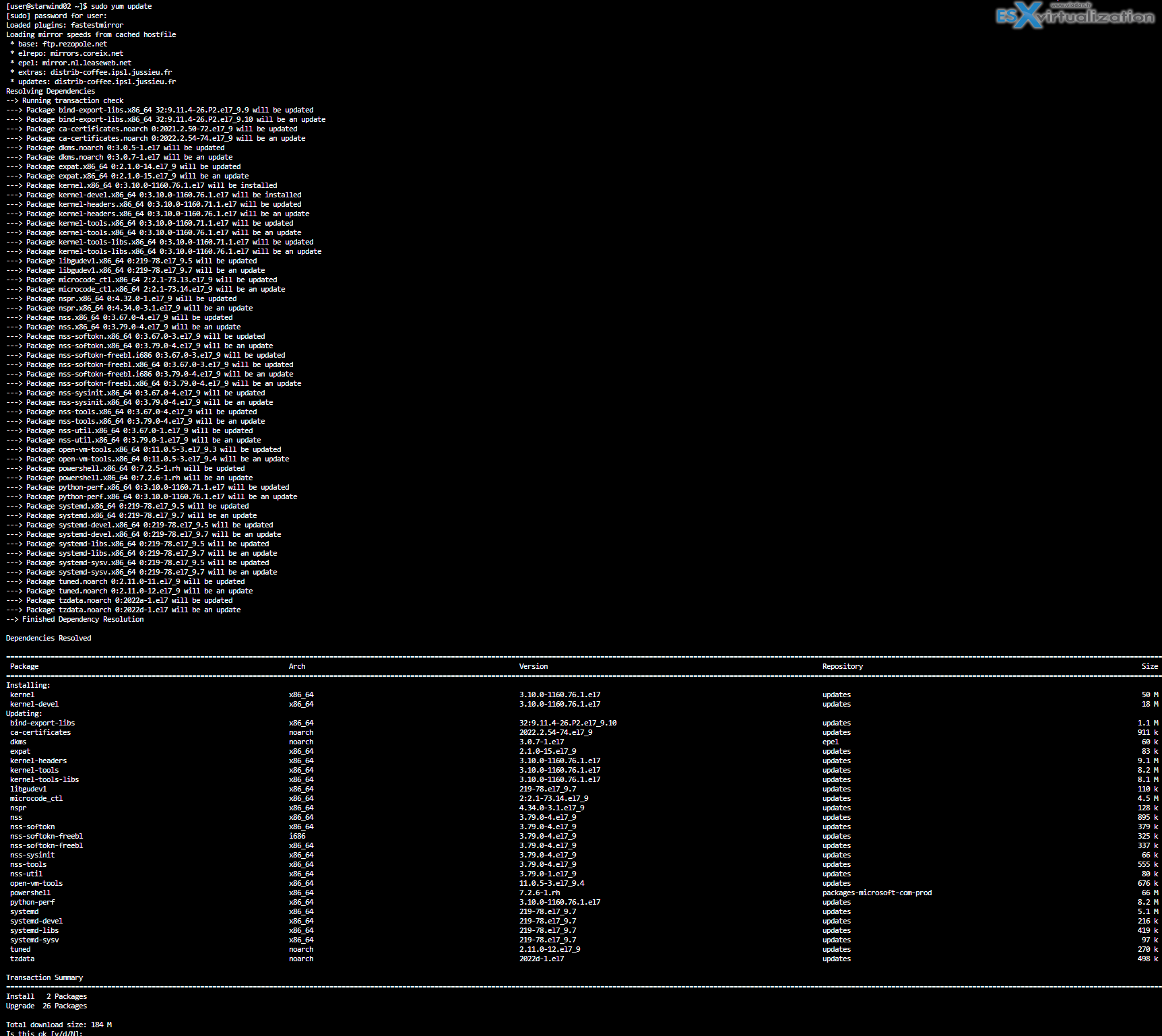

sudo yum update
to refresh the package database and install updates.
Reboot the system if kernel was updated by typing

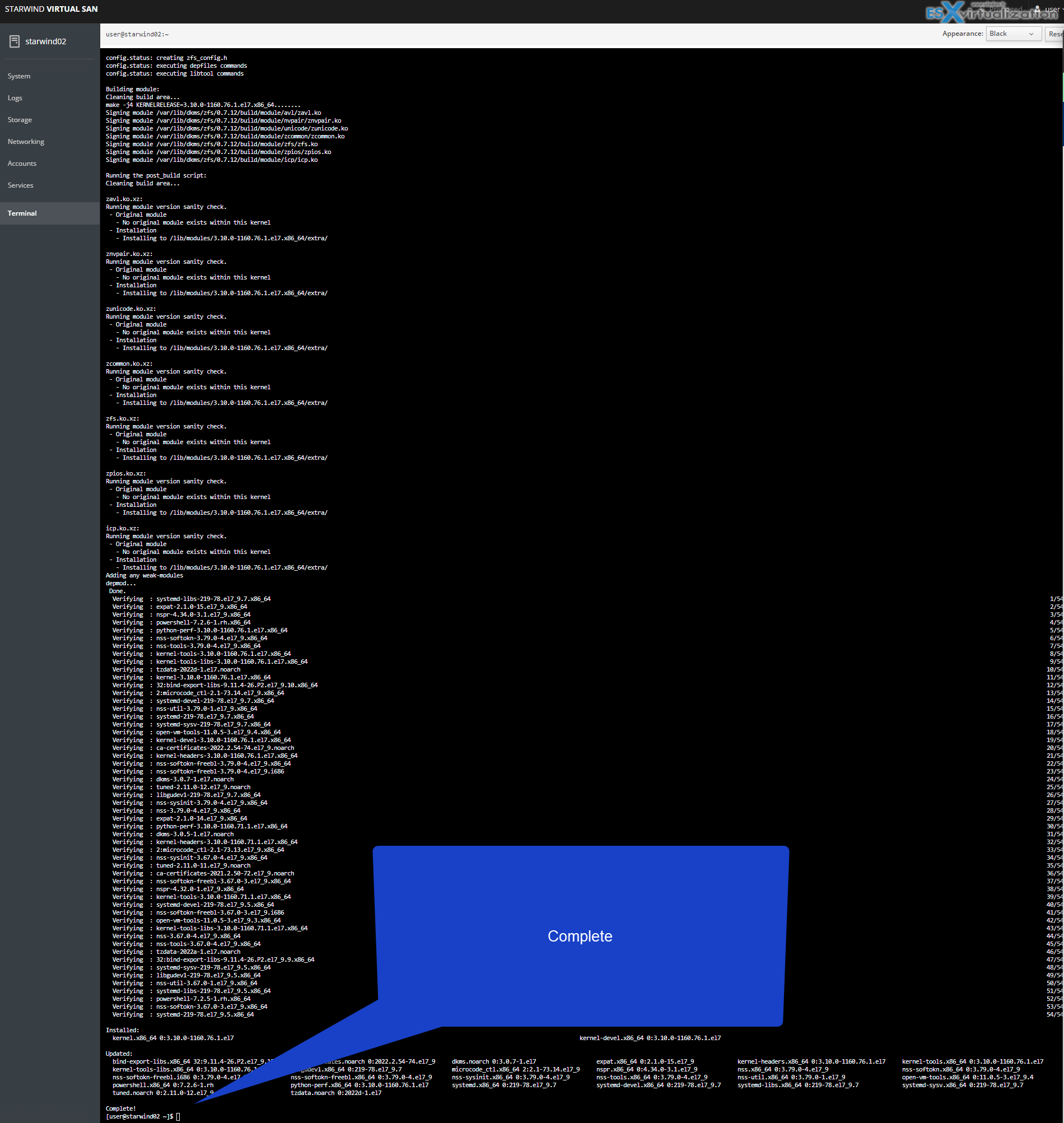

System reboots and you are up-to-date.
Note that you might have to wait a couple of min for all the StarWind services to come UP.
Rinse and repeat for the rest of your nodes. In the lab, I'm just running 2-Nodes StarWind VSAN.

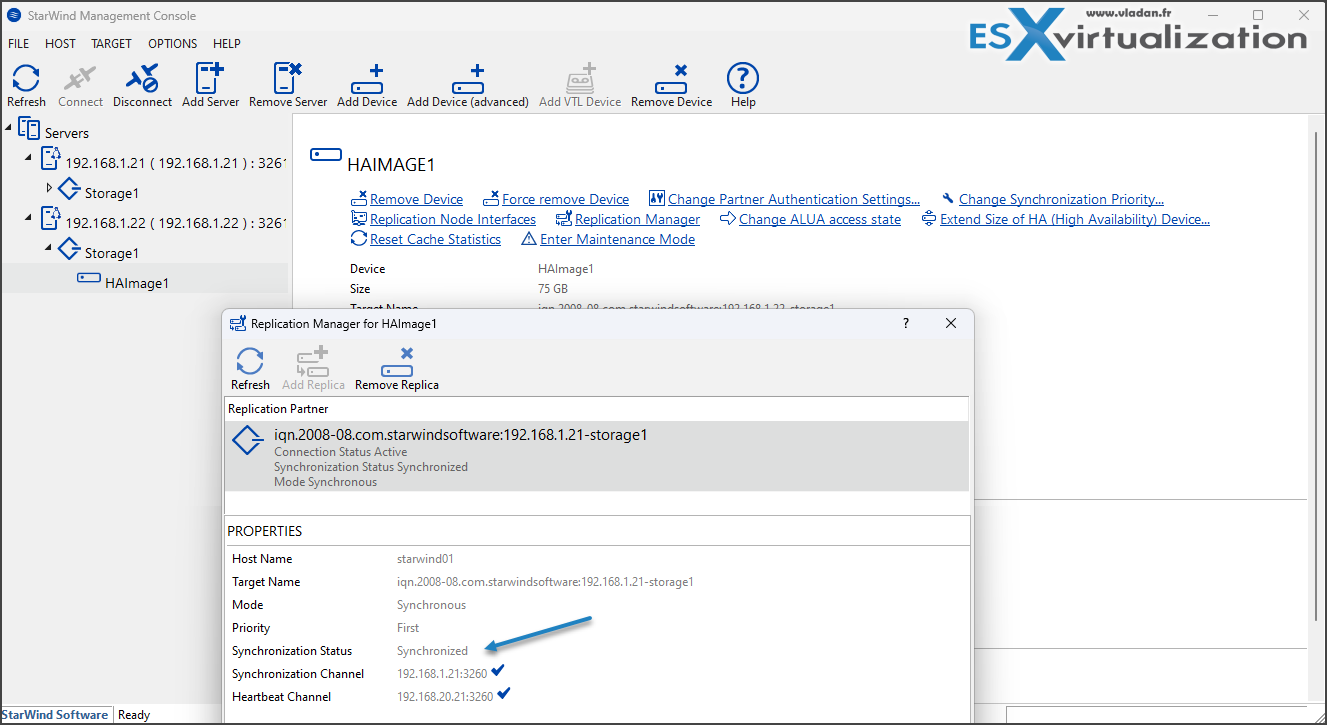

After you've done your nodes, check the status of your HA storage device. It should say Synchronized.
StarWind console running on Windows box.
Where to check the latest StarWind release builds?
Just go to this URL: https://www.starwindsoftware.com/release-notes-build
What to do next?
After we updated StarWind VSAN and the underlying CentOS you might wonder whether you would like to back up the appliance so you can restore it if anything happens. You can lose a local RAID, sure. In some extreme situations where you lose 3 disks at the same time.
In this case, why not to back up the StarWind System disk? That's exactly what I do in the lab. I have my backup software backing up the StarWind VSAN appliances on both nodes. You'll want to exclude non-system disks (data disks) from this as those disks are automatically replicated after you restore from backup.
Note: I'm backing up both nodes. In case you'll need to restore, simply pick the node you want to restore, not both….

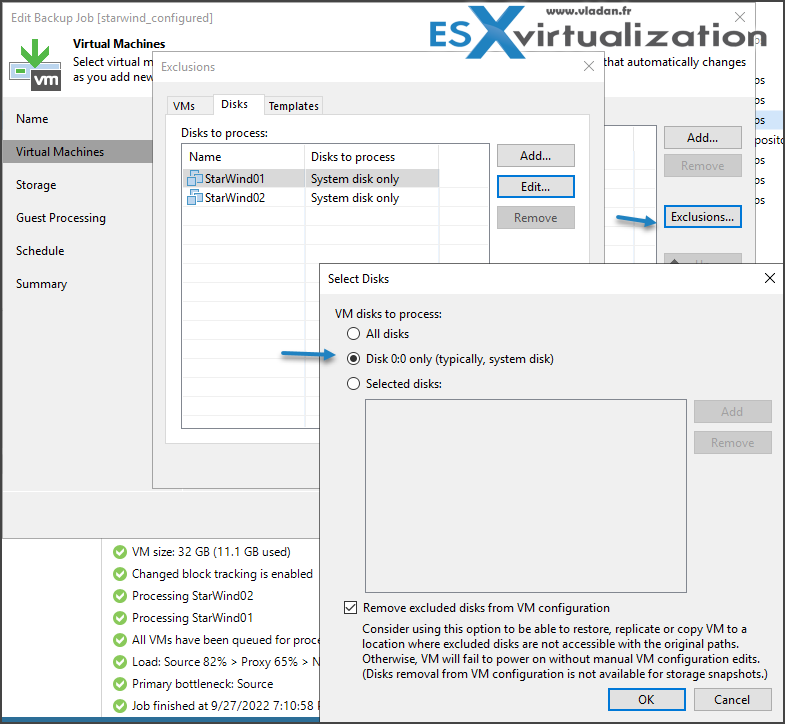

This is how it looks like within Veeam Backup and Replication (I'm using Veeam in the Lab).
Note the check box “Remove excluded disks from VM configuration”. This allows you to restore to another location where the excluded disks are not accessible with the original path. Like this, the VM will start up even if the paths to the data disks aren't correct. You can always edit the VM and attach/recreate the data disks so the StarWind replication manager can kicks in and replicate the data.
In the lab, I'm using Veeam software.
Free Trial of Veeam Backup and Replication – Latest ISO.
The trial transforms into a Community edition at the end of the 30 days. You can then use it for Free to backup up to 10 VMs.
StarWind VSAN is hyper convergent infrastructure solution allowing you to use the local disks in each host, and create HA storage. If one node goes down, the other node is still up with half of the mirror. Coupled with backup software, you can backup the system configuration (the system disk) of each StarWind node. With a small budget, you can build a really cool resilient VMware vSphere infrastructure.
It's all software driven. No new hardware boxes and dedicated storage. StarWind can do 2-nodes, but also 3 and more nodes too…..Check StarWind VSAN Trial Download here.
StarWind can run with or Without a witness. In the case of 2-nodes, you can choose from both. Node Majority Mechanism ensures that the StarWind storage cluster is running with minimum to no downtime at all. Moreover, StarWind provides flexible options for setting up a Witness, including cloud witness, making it exceptionally simple to implement. Whatever your IT infrastructure configuration, StarWind is sure to take its performance to maximum, maintaining high constant application uptime and HA regardless of any disaster.
